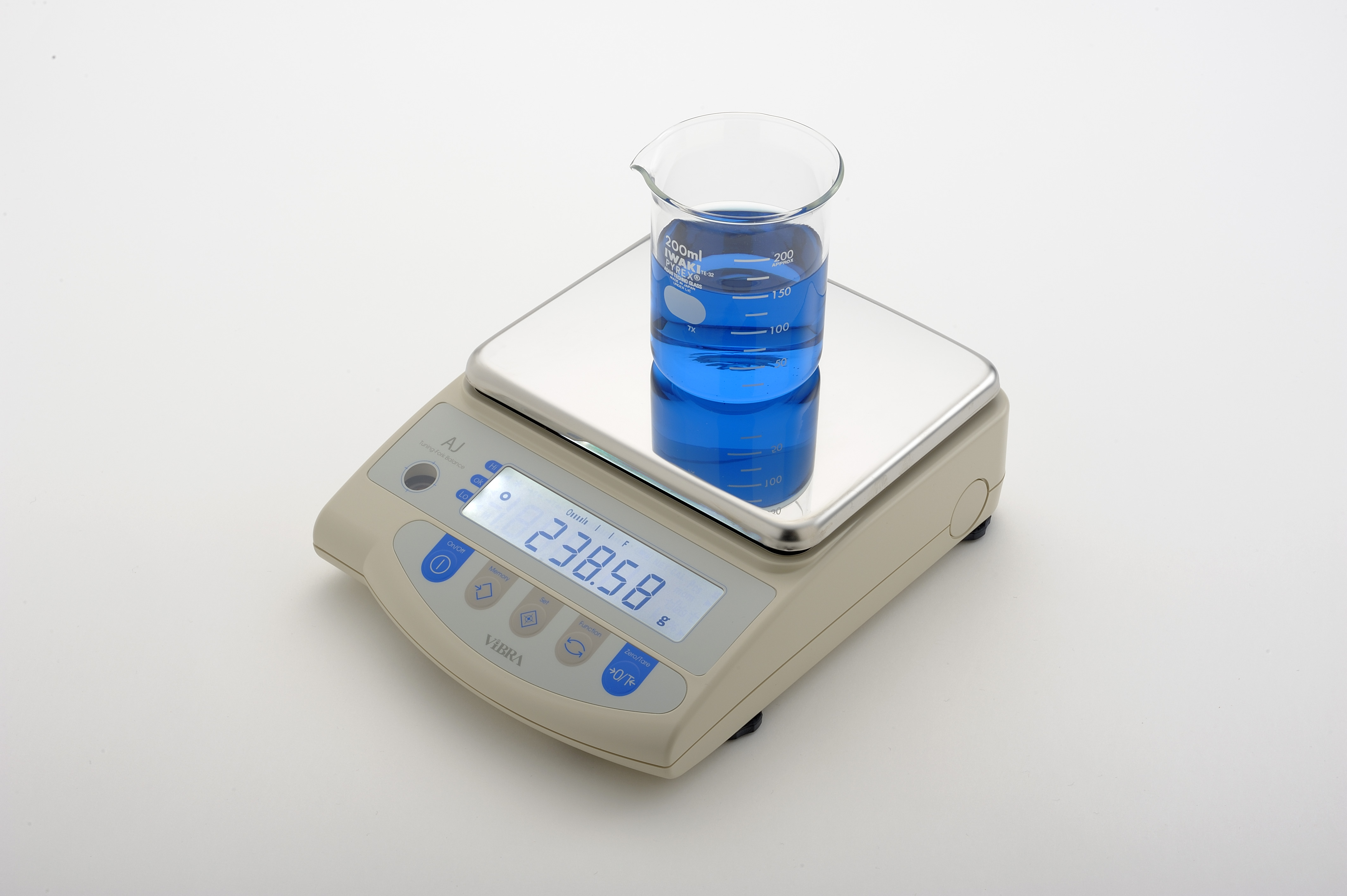

AJ/AJH series

Precision Balance
Capacity：220g〜12kg／Readability：0.001g～0.1g

SHIMPLE IS THE BEST.

Common　Specification

Tare	Zero to Full weighing range
Span adjustment	AJ･････Manual operation Span Adjustment with external calibration weight AJH･････Semi-automatic Span Adjustment with built-in calibration weight
Over error	"o-Err" showed when Full weight range + 9 more digits over
Temperature and humidity range	5 ～ 35℃ (E type), 10~30℃ (CE type) Up to 80％ rh(without the dew condensation)
Power source	AC adapter Input 100-240VAC / Output 12VDC
Output	RS232C(Din5p)

Download

Manual of AJ-E

Manual of AJ/AJH-CEN (220 -1200）

Manual of AJ/AJH-CEN (2200-12K)

Manual of Density Measurement Kit option

EU Declaration of conformity

AJ catalog

AJ physical dimension AJ(H)220-620g

AJ physical dimension AJ820-1200g

AJ physical dimension AJ(H)2200-12kg

Features

Simple but profound
Vast potential in the compact housing

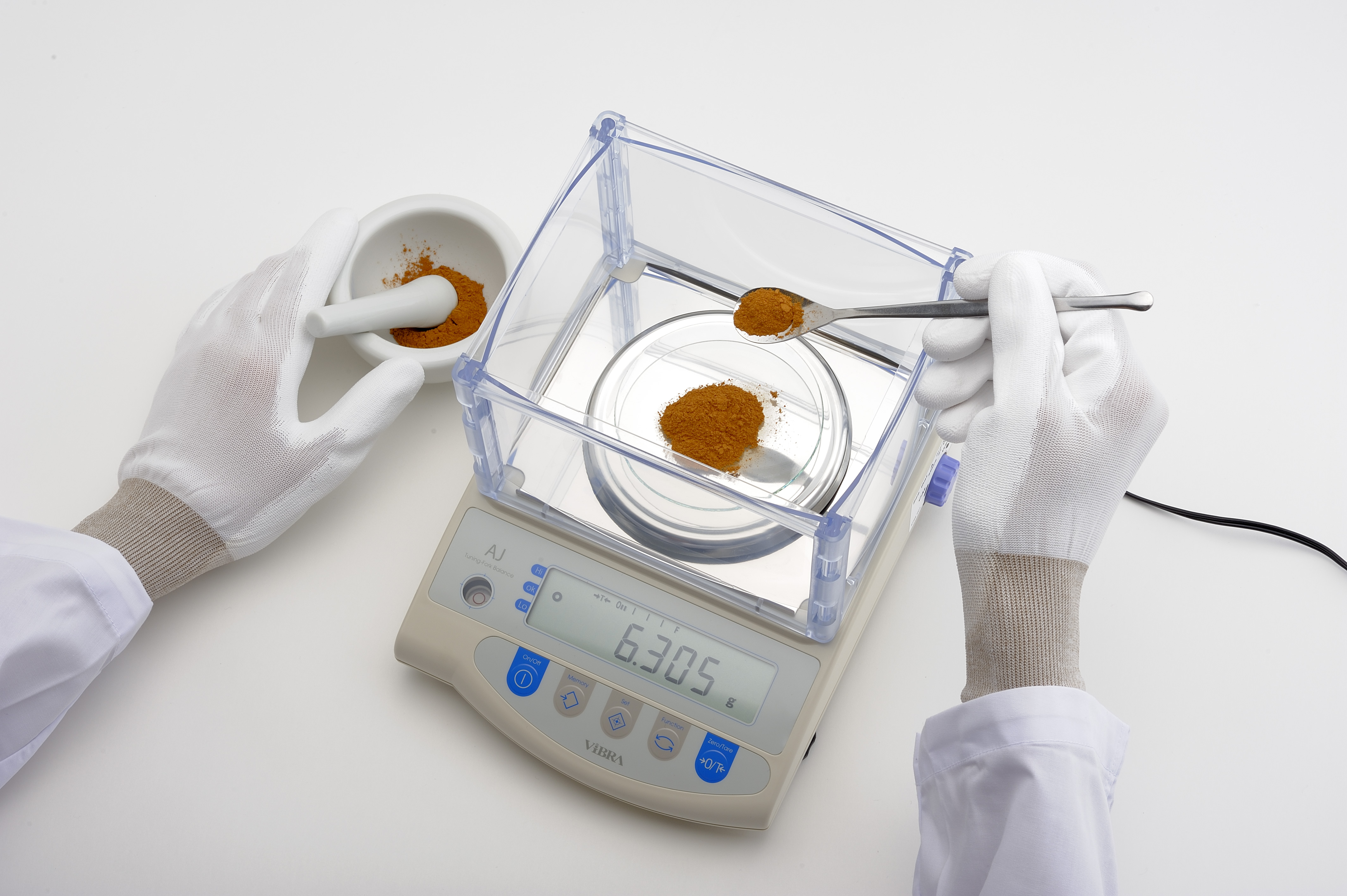

For laboratory, factory, jewelry shops, etc...
Quick response and stable indication
OIML and EU class2, class 1 approved

Simple is the best

This is the basic concept of ViBRA AJ series. Simple, but profound scope for wide measurement fields. Laboratory, factory, jewelry shops, etc... ViBRA AJ series is always the simplest & the best solution for your needs.

Easy switching the weighing modes

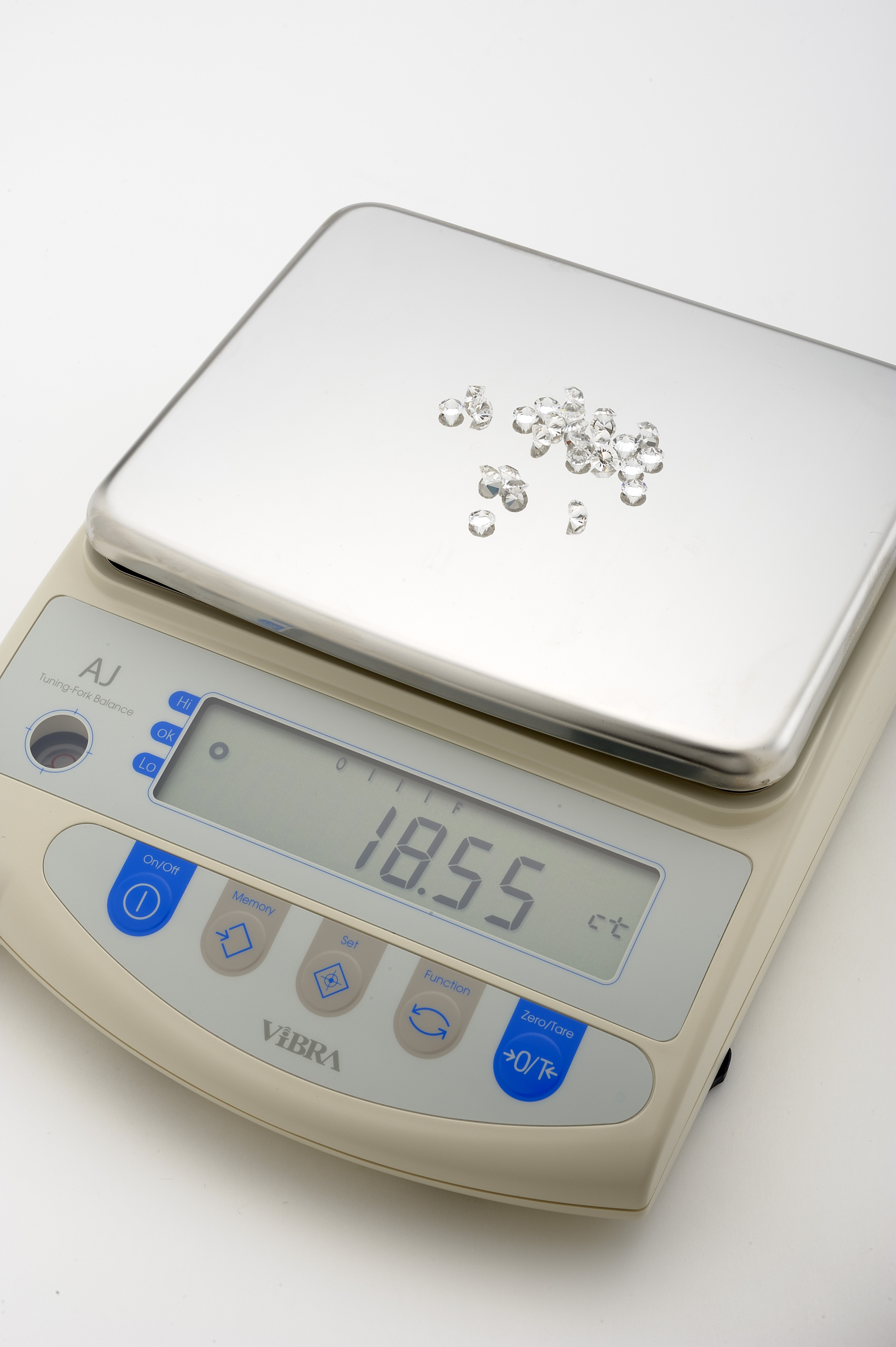

ViBRA AJ series provides four weighing modes, simple weight measurement, parts counting, percentage weighing and carat measurement for jewelers. You can easily switch the weighing mode by pushing function key.

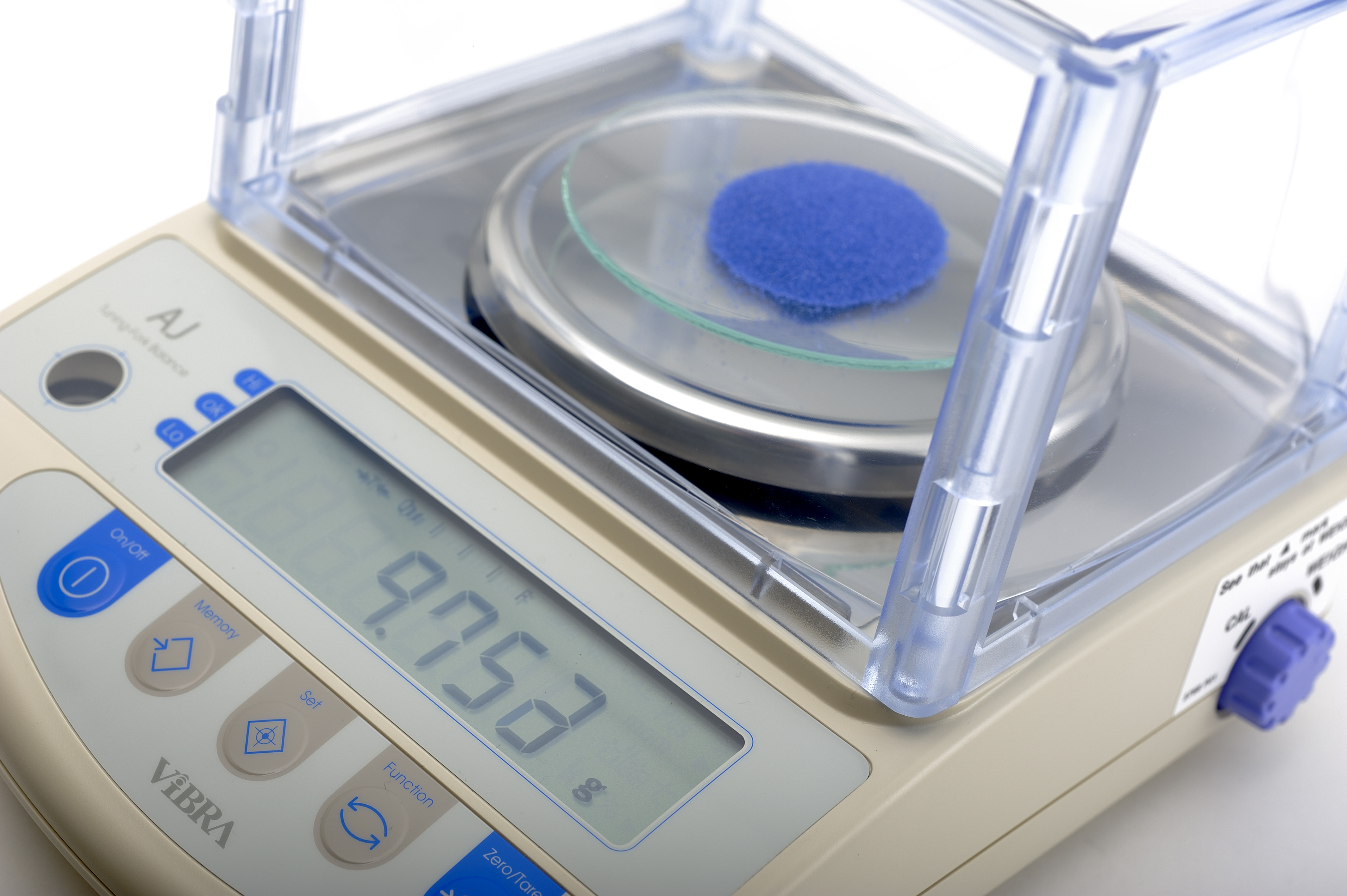

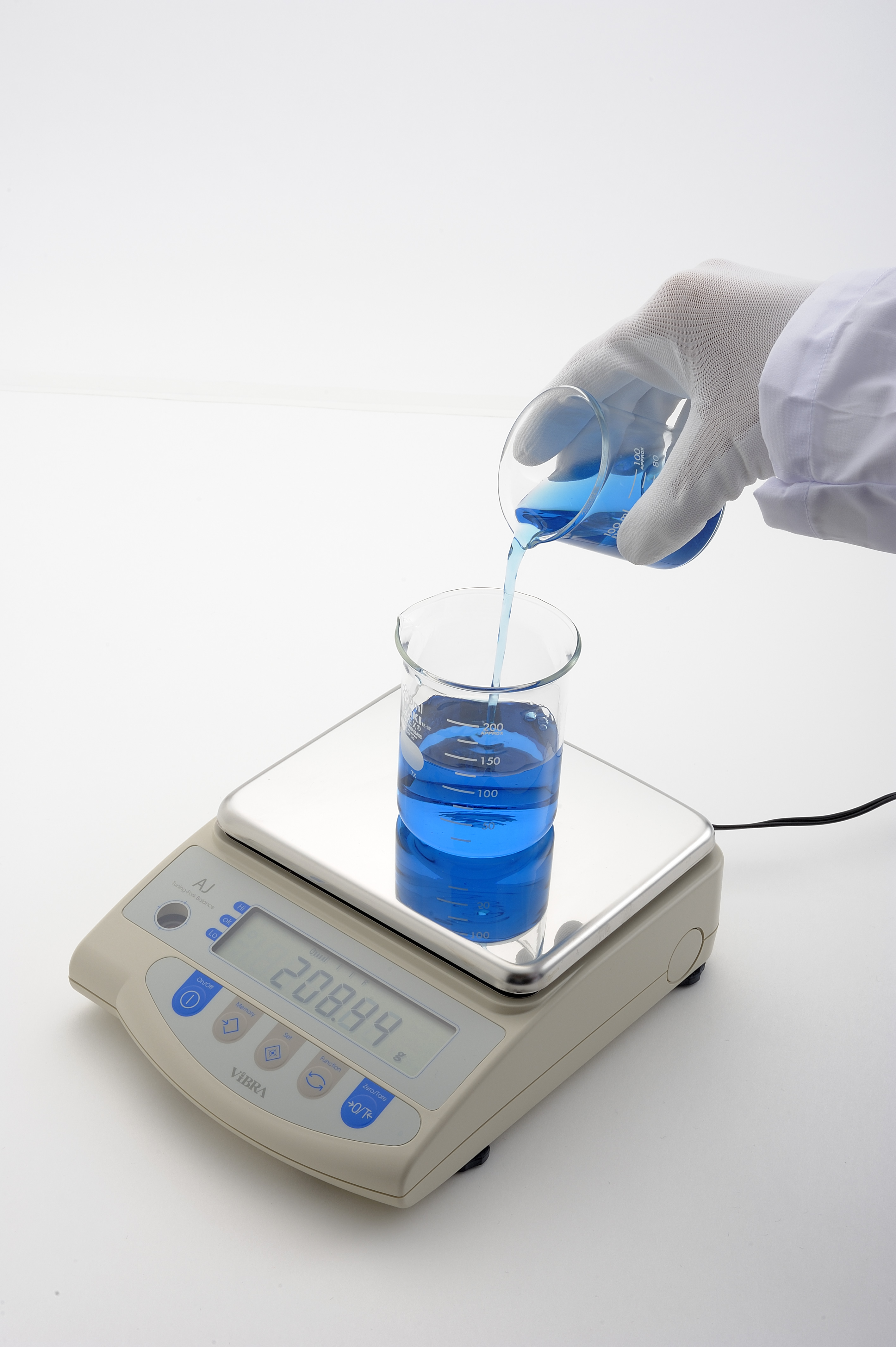

Quick Response & Stable Indication

Quick response and stable indication are important feature in the precise weight measurement. The innovative tuning-fork sensor in ViBRA AJ series meets this demand and satisfies you.

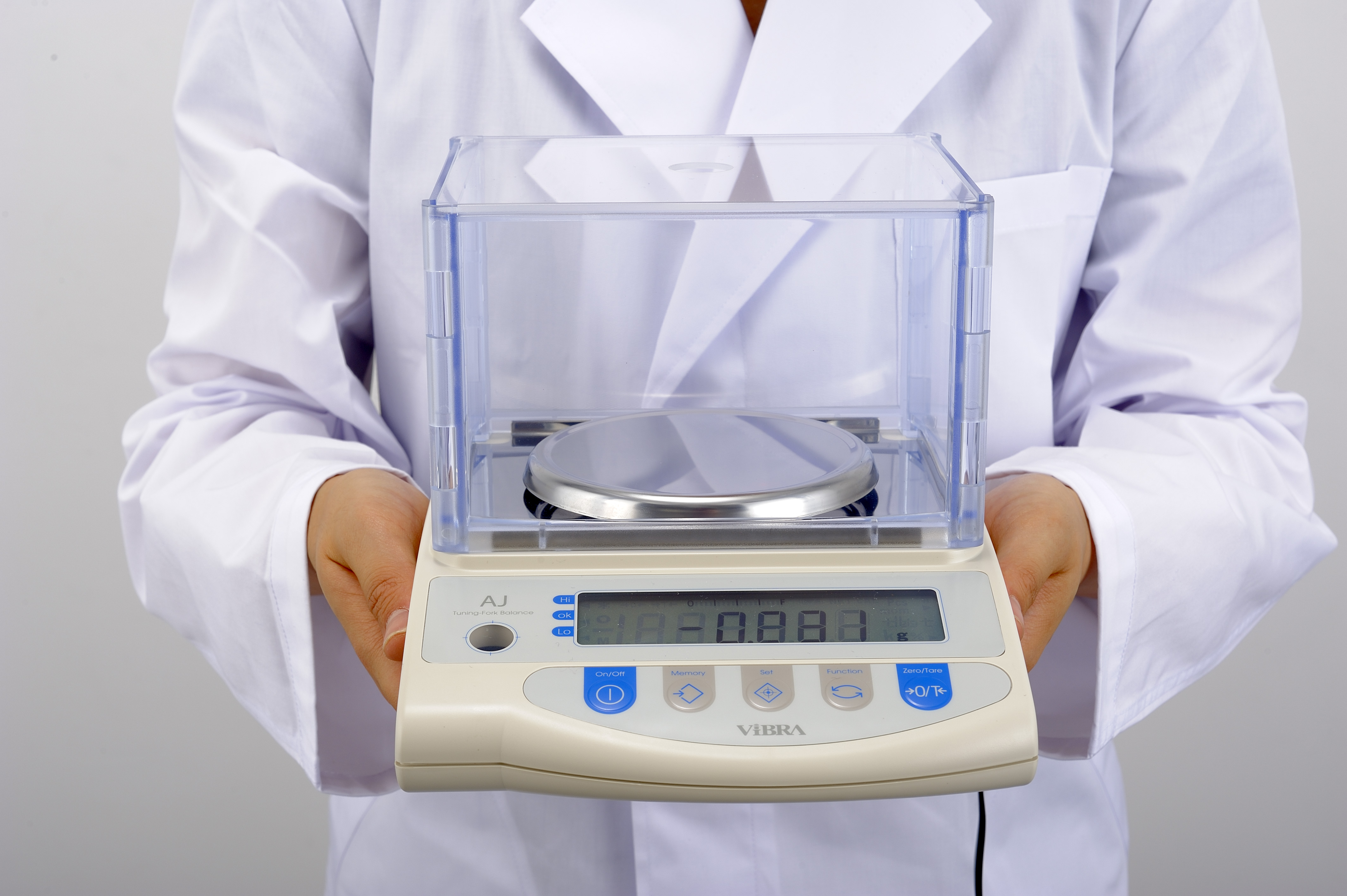

Compact housing, high portability

The compact housing is one of the advantages of ViBRA AJ series. The space-saving design enables you to instal it even in small space. Furthermore you can bring it everywhere you want with optional rechargeable battery.

Specification

Model name	AJH-220E AJH-220CEN	AJH-320E AJH-320CEN	AJH-420E AJH-420CEN	AJH-620E AJH-620CEN
Capacity	220g	320g	420g	620g
Readability (d)	0.001g	0.001g	0.001g	0.001g
Verification intervals (e)	0.01g	0.01g	0.01g	0.01g
Accuracy class	Ⅱ	Ⅱ	Ⅱ	Ⅰ
Repeatability	0.001g	0.001g	0.001g	0.001g
Linearity	±0.001g	±0.001g	±0.001g	±0.001g
Stabilization time	3.0 sec.	3.0 sec.	3.0 sec.	3.0 sec.
Pan size	118mm dia
Dimentions(WDH)	182×235×168mm（Including Windshield)
Windshield	○	○	○	○

Model name	AJH-2200E AJH-2200CEN	AJH-3200E AJH-3200CEN	AJH-4200E AJH-4200CEN
Capacity	2200g	3200g	4200g
Readability (d)	0.01g	0.01g	0.01g
Verification intervals (e)	0.1g	0.1g	0.1g
Accuracy class	Ⅱ	Ⅱ	Ⅱ
Repeatability	0.01g	0.01g	0.01g
Linearity	±0.01g	±0.01g	±0.01g
Stabilization time	3.0 sec.	3.0 sec.	3.0 sec.
Pan size	180×160mm
Dimentions(WDH)	192×265×87mm
Windshield	×	×	×

Model name	AJ-220E AJ-220CEN	AJ-320E AJ-320CEN	AJ-420E AJ-420CEN	AJ-620E AJ-620CEN	AJ-820E AJ-820CEN	AJ-1200E AJ-1200CEN
Capacity	220g	320g	420g	620g	820g	1200g
Readability (d)	0.001g	0.001g	0.001g	0.001g	0.01g	0.01g
Verification intervals (e)	0.01g	0.01g	0.01g	0.01g	0.01g	0.1g
Accuracy class	Ⅱ	Ⅱ	Ⅱ	Ⅰ	Ⅰ	Ⅱ
Repeatability	0.001g	0.001g	0.001g	0.001g	0.01g	0.01g
Linearity	±0.001g	±0.001g	±0.001g	±0.002g	±0.01g	±0.01g
Stabilization time	2.5 sec.	2.5 sec.	2.0 sec.	2.0 sec.	2.0 sec.	2.0 sec.
Pan size	118mm dia				170×142mm
Dimentions(WDH)	182×235×168mm（Including Windshield)				182×235×75mm
Windshield	○	○	○	○	×	×

Model name	AJ-2200E AJ-2200CEN	AJ-3200E AJ-3200CEN	AJ-4200E AJ-4200CEN	AJ-6200E AJ-6200CEN	AJ-8200E AJ-8200CEN	AJ-12KE AJ-12KCEN
Capacity	2200g	3200g	4200g	6200g	8200g	12000g
Readability (d)	0.01g	0.01g	0.01g	0.01g	0.1g	0.1g
Verification intervals (e)	0.1g	0.1g	0.1g	0.1g	1g	1g
Accuracy class	Ⅱ	Ⅱ	Ⅱ	Ⅰ	Ⅱ	Ⅱ
Repeatability	0.01g	0.01g	0.01g	0.01g	0.1g	0.1g
Linearity	±0.01g	±0.01g	±0.01g	±0.02g	±0.1g	±0.1g
Stabilization time	2.5 sec.	2.5 sec.	2.5 sec.	3.0 sec.	2.5 sec.	2.5 sec.
Pan size	180×160mm
Dimentions(WDH)	192×265×87mm
Windshield	×	×	×	×	×	×

Functions

Option

Model No.	Option Name
AJBT(S)	Rechargeable battery (200g-1200g)
AJBT(M)	Rechargeable battery (2200g-12kg)
AJUH(S)	Under weighing hook (220g-1200g)
AJUH(M)	Under weighing hook (2200g-12kg)
AJDK	Density measurement kit

Peripheral equipment

Model No.	Peripheral Name
LAS-05D-SD	"No wind" Ionizing blower
CBM-910Ⅱ	Standard Printer
CSP-160Ⅱ	Statistics Printer
RTS	Data-collecting Software
SDI	Satellite Second Display

＊ CSP-160II : Not available to use in EEA, Switzerland & Turkey.
