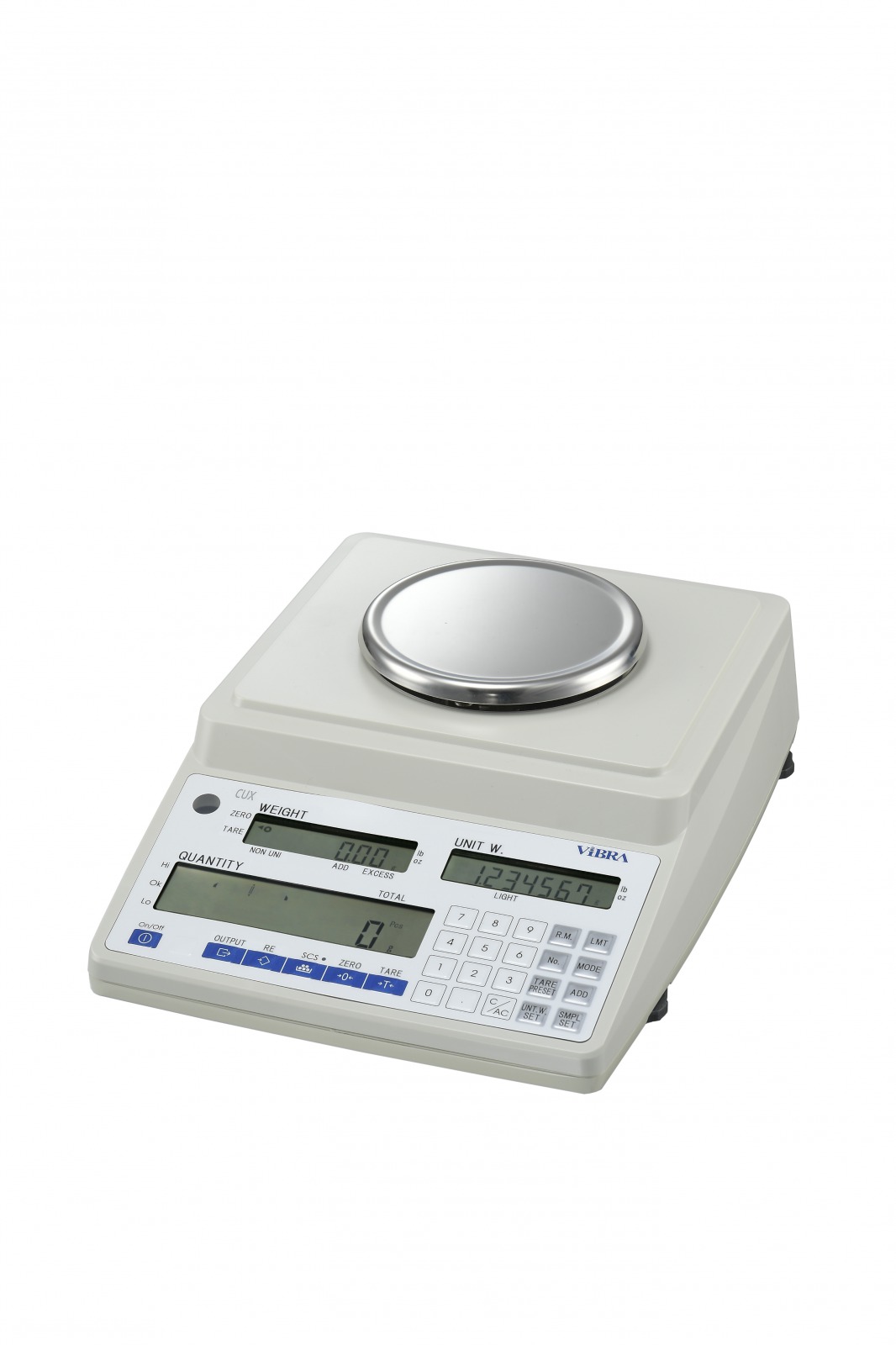

CUX series

Precision Balance
Capacity：60g〜0.15kg／Readability：0.001g～20g

Zero error in the parts counting operation

Common　Specification

Tare Zero to full weighing range
Maximum counting quantity 600,000pcs for CUX60～12K, 16KS, 30KS
100,000pcs for CUX16K, 30K, 60K, 150K
Span adjustment Manual span adjustment with external weight
Over error "o-Err" appears when load of full weight range + 9 digits over
Temperature and humidity range 0～ 40℃、Up to 80％ rh(without the dew condensation)
Power source Dedicated AC adapter
Output RS232C (D-sub 9P)

Download

CUX operation manual
CUX Quick guide
Catalog

Features

  • ACR (Automatic Counting Revision) function for accurate counting operation
  • Three back-lit LCD display to indicate "quantity", "unit weight" and total weight at the same time
  • Tare-reminder function

To achieve zero error in the parts counting operation

[イメージ]

Three back-lit display

[イメージ]

Specification

Model name CUX60 CUX150 CUX300 CUX600 CUX1500
Measurement system Tuning-fork sensor
Capacity 60g 150g 300g 600g 1500g
Countable unit weight 0.1mg 0.25mg 0.5mg 1mg 2.5mg
Minimum readability 0.001g 0.002g 0.005g 0.01g 0.05g
Pan size 118mm dia. 140mm dia. 234x204mm
Dimension (WxDxH) 260x344x173mm (including windshield) 260x344x101mm





Model name CUX3000 CUX6000 CUX12K CUX16KS CUX30KS
Measurement system Tuning-fork sensor
Capacity 3000g 6000g 12kg 16kg 30kg
Countable unit weight 5mg 10mg 20mg 50mg 0.1g
Minimum readability 0.05g 0.1g 1g 0.5g 1g
Pan size 234x204mm 360x320mm
Dimension (WxDxH) 260x344x101mm  360x482x683mm





Model name CUX16K CUX30K CUX60K CUX150K
Measurement system Strain guage loadcell sensor
Capacity 16kg 30kg 60kg 150kg
Countable unit weight 0.16g 0.3g 0.6g 1.5g
Minimum readability 0.002kg 0.005kg 0.01kg 0.02kg
Pan size 330x310mm 380x530mm
Dimension (WxDxH) 330x448x491mm 380x669x766mm
