FS series

Platform scale
Capacity：620g〜300kg／Readability：0.001g～1g

High precision weighing for every process in the manufacturing

Common　Specification

Tare	Zero to Full weighing range
Span adjustment	Manual operation Span Adjustment with external calibration weight
Ingress Protection Rating	IP65
Over error	"o-Err" showed when Full weight range + 9 more digits over
Temperature and humidity range	5 ～ 40℃、Up to 85％ rh(without the dew condensation)
Power source	AC adapter Input 100-240VAC / Output 6VDC and dry-cell battery *1
Output	RS232C(Dsub 9Pin)+Printer out put(Din 8Pin)
Scale cable length	5m for FS 150K1GF and 300K1GF.1m for all other models. *2

Download

FS operation manual

FS installation manuals

FS-FZ catalog

EU declaration of conformity

FS-option box (S size) EU declaration of conformity

FS output options configuration sheet

FS cable configuration sheet

FS physical dimension

FS-option box (M size) EU declaration of conformity

Features

High precision weighing in manufacturing process
Wide weighing range from 620g up to 300kg
IP65 water and dust proof
Dry-cell battery drive as standard feature
OIML and EU class2 approved

High Capacity and High Precision – Two in One

FS series attains high capacity and high precision in single unit. With FS 300K1GF model, you can measure up to 300KG with 1g readability, which satisfies two demands in single unit, high capacity and high resolution. Unique technology “tuning-fork” sensor enables “two-in-one” feature. This unique technology also ensures excellent weighing performance and long-term stability even in tough condition.

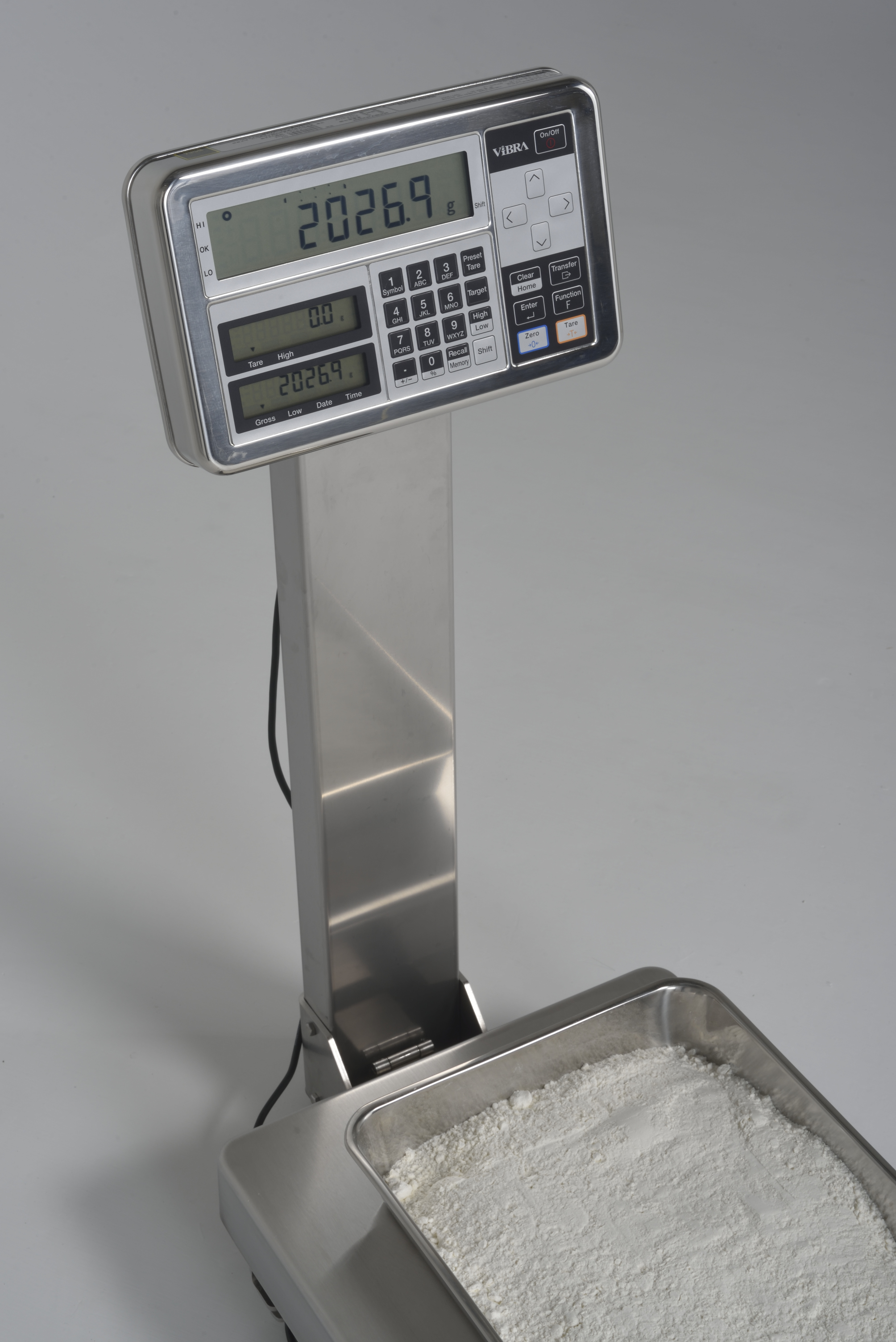

Reliable measurement for every process in manufacturing

FS series helps your daily weighing operation in every process in manufacturing line. With weighing range from 620g to 300kg and minimum read-out 1mg, FS can cover every process, in-bound material control, production, inspection and out-bound control, etc...

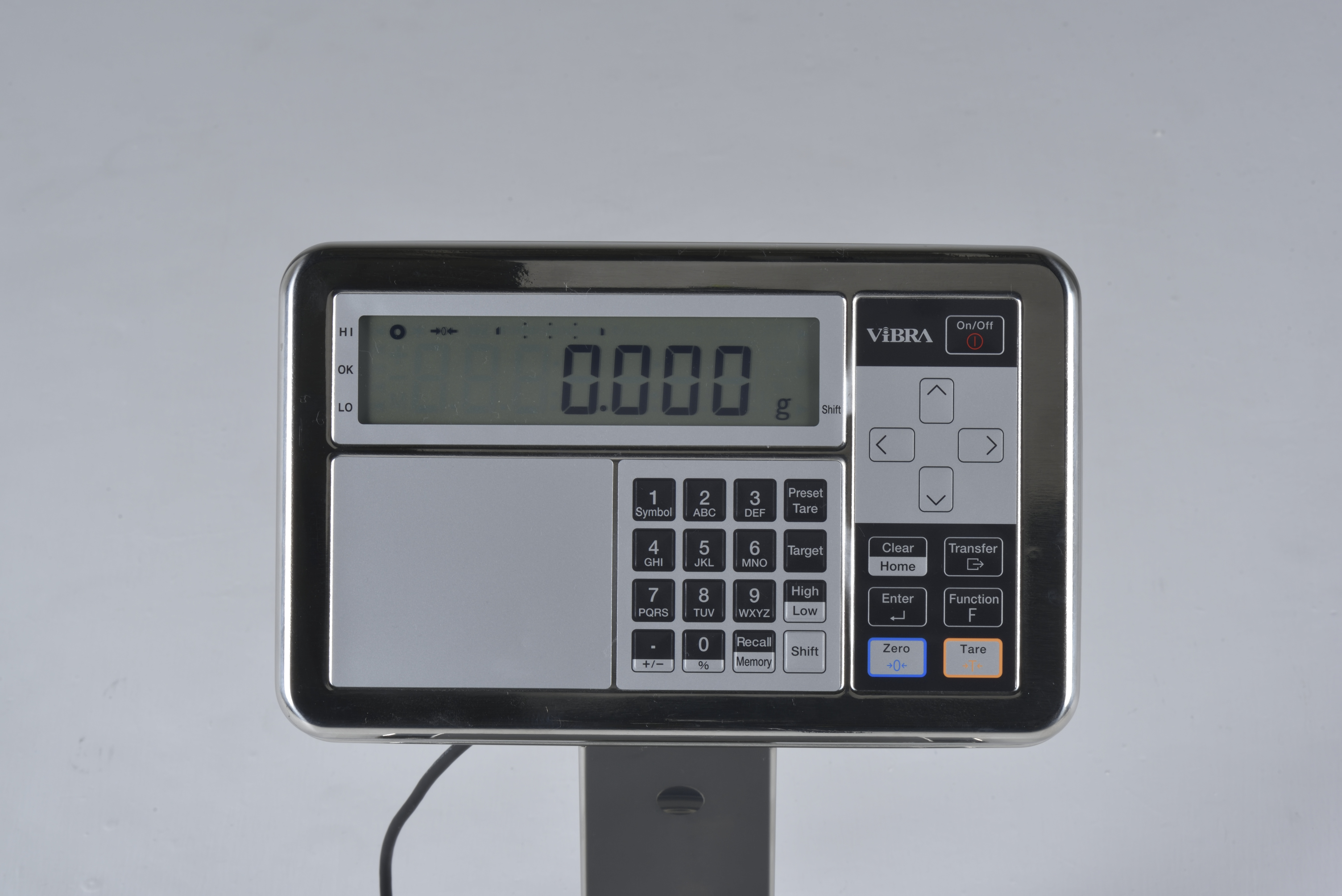

Selectable indicator, i02

You can choose one of two indicators, i02 type and i03 type. i02 type is simple indicator with single display.

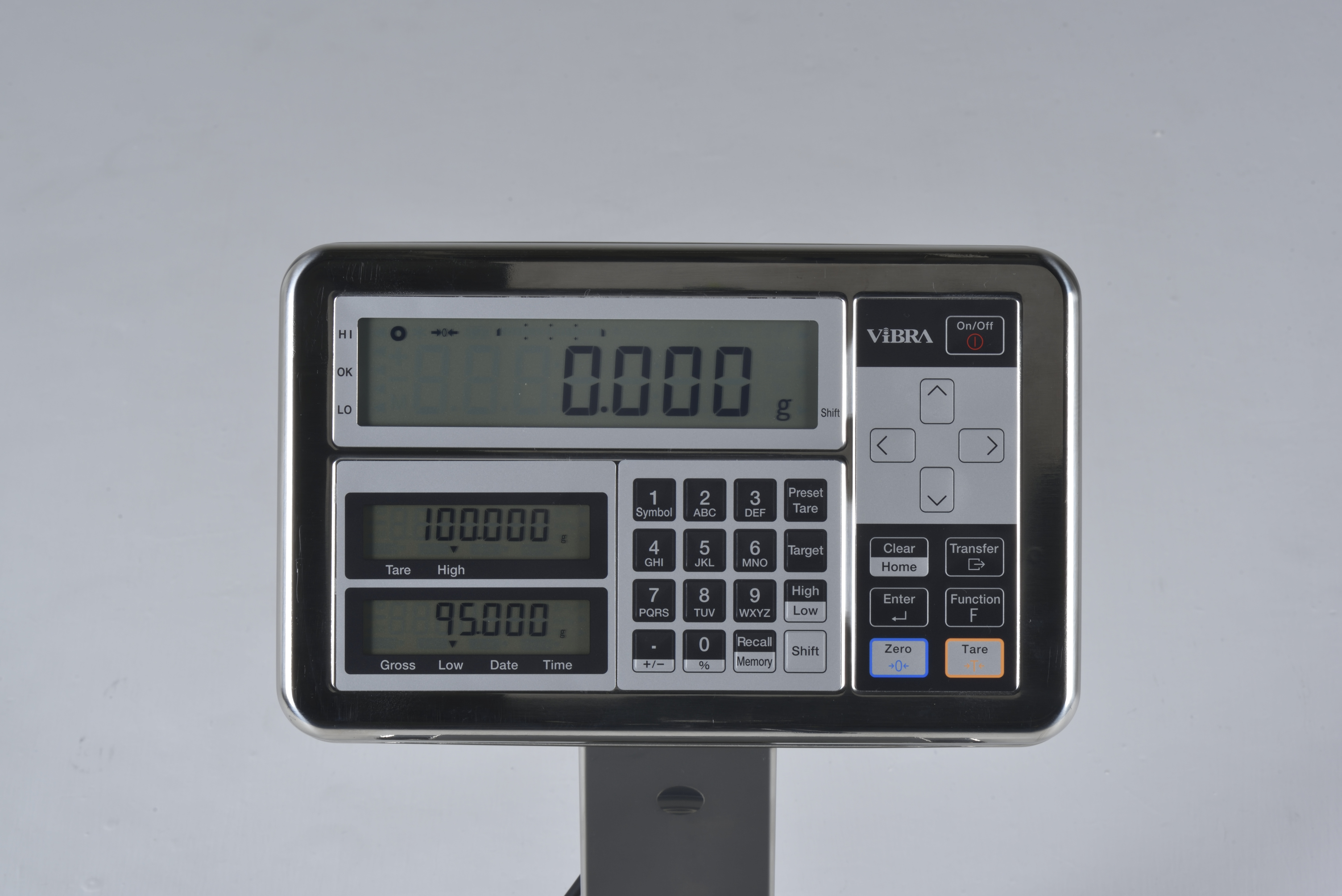

Selectable indicator, i03

You can choose one of two indicators, i02 type and i03 type. i03 type has two sub-displays in which two additional information can be indicated (tare weight, gross weight, lower and upper limit, etc..).It make weighing operation easier and more comfortable.

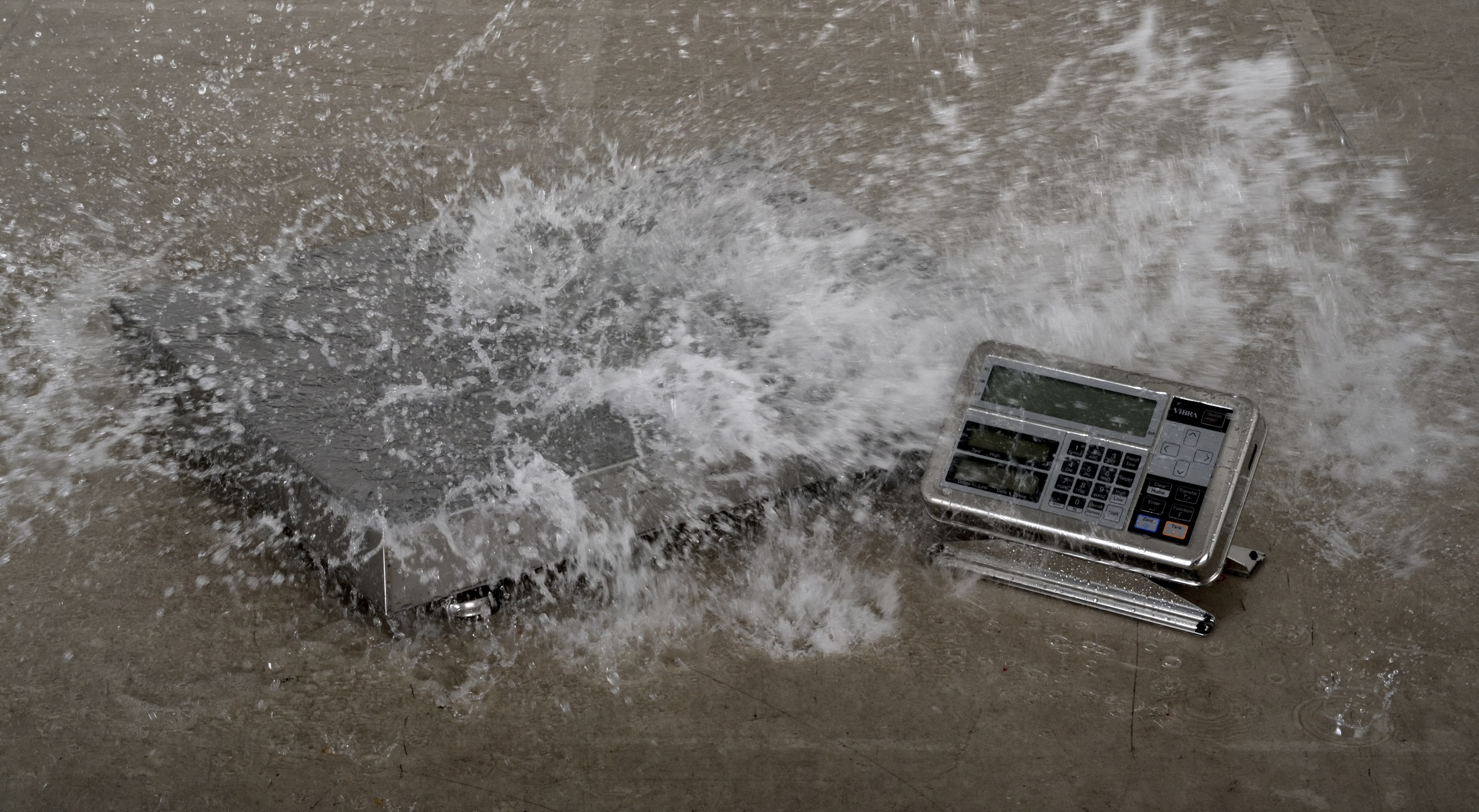

IP65 water & dust proof, easy to clean

All models in FS series have IP protection (rating 65) which allows FS to be used in tough environment. After daily operation you can wash FS with water and keep balance in clean condition.

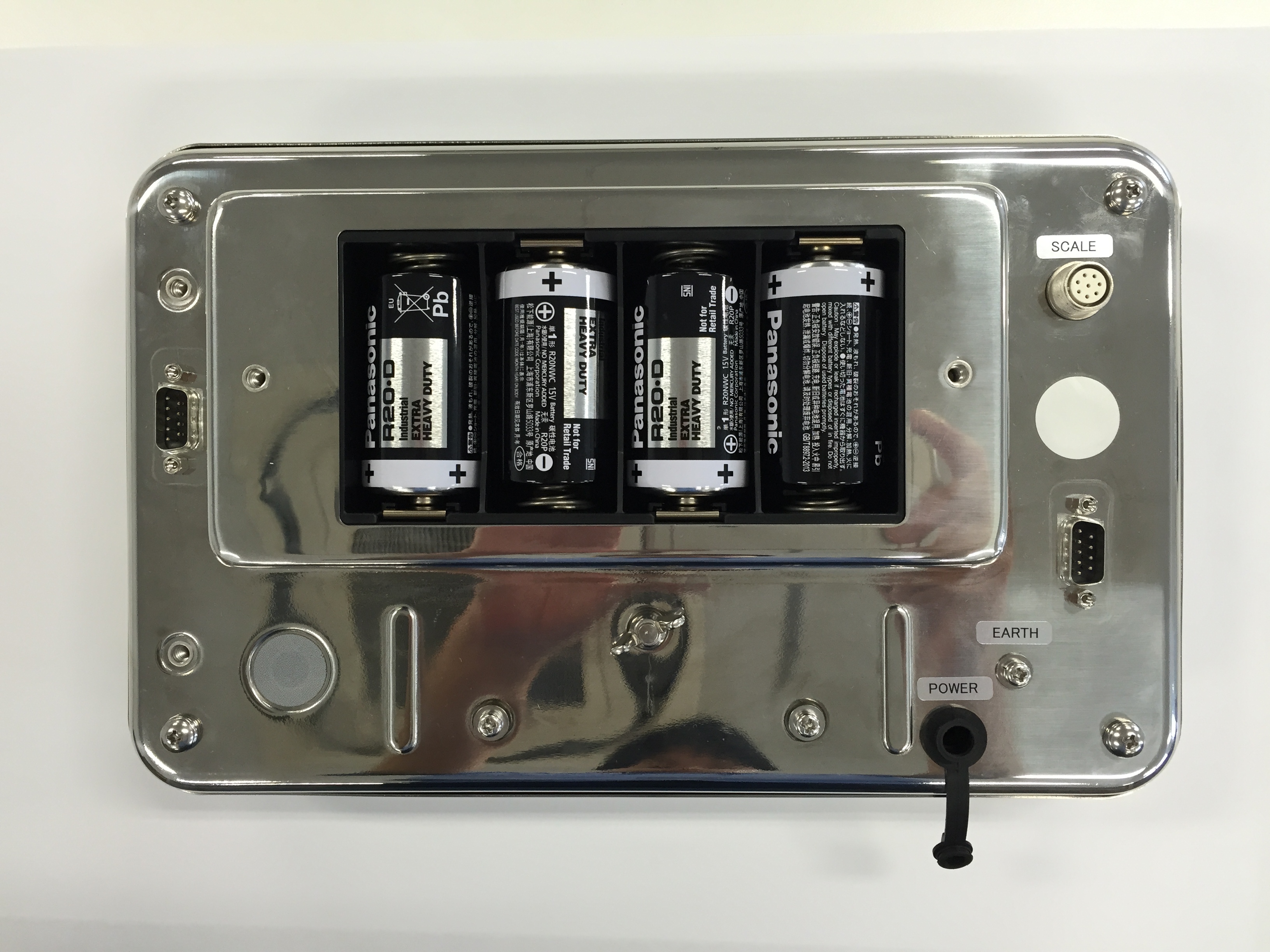

Dry-cell battery drive

FS series can be operated with dry-cell battery as well as with power supply from AC adaptor.

Specification

Model name	FS623	FS3202	FS6202	FS15001
Capacity	620g	3200g	6200g	15000g
Readability (d)	0.001g	0.01g	0.01g	0.1g
Verification intervals (e)	0.01g	0.1g	0.1g	1g
Repeatability	0.001g	0.01g	0.01g	0.1g
Linearity	±0.002g	±0.02g	±0.02g	±0.2g
Stabilization time	3.0 sec.	3.0 sec.	3.0 sec.	3.0 sec.
Pan size	140mm dia	190 x 190mm	190 x 190mm	190 x 190mm
Dimentions(WDH)	294 x 352 x 570mm

Model name	FS30K0.1G	FS60K0.1G	FS100K1G	FS200K1G
Capacity	30kg	60kg	100kg	200kg
Readability (d)	0.1g	0.1g	1g	1g
Verification intervals (e)	1g	1g	10g	10g
Repeatability	0.1g	0.1g	1g	1g
Linearity	±0.1g	±0.2g	±2g	±2g
Stabilization time	3.0 sec.	2.5 sec.	2.5 sec.	2.0 sec.
Pan size	310 x 330mm	380 x 530mm	380 x 530mm	380 x 530mm
Dimentions(WDH)	310 x 444 x 672mm	380 x 653 x 804mm

Model name	FS150K1GF	FS300K1GF
Capacity	150kg	300kg
Readability (d)	1g	1g
Verification intervals (e)	10g	10g
Repeatability	0.7g	0.8g
Linearity	±3g	±5g
Stabilization time	2.0 sec.	2.0 sec.
Pan size	800 x 600mm	800 x 600mm
Dimentions(WDH)	800 x 600 x x142mm

Functions

Option

Model No.	Option Name
FS-RS	additional RS232C output
FS-R4	RS422A output
FS-LM	Relay contact
FS-DS	Display stand
FS-PK	Pole stand
FS-SC	Extended scale cable (10m, 20m)
FS-WS	Windshield for FS 623 (S, M, L. Three sizes selectable)
FS-OX(S)	Communication option box (S)
FS-OX(M)	Communication option box (M)

Peripheral equipment

Model No.	Peripheral Name
CBM-910Ⅱ	Standard Printer
RTS	Data-collecting Software
