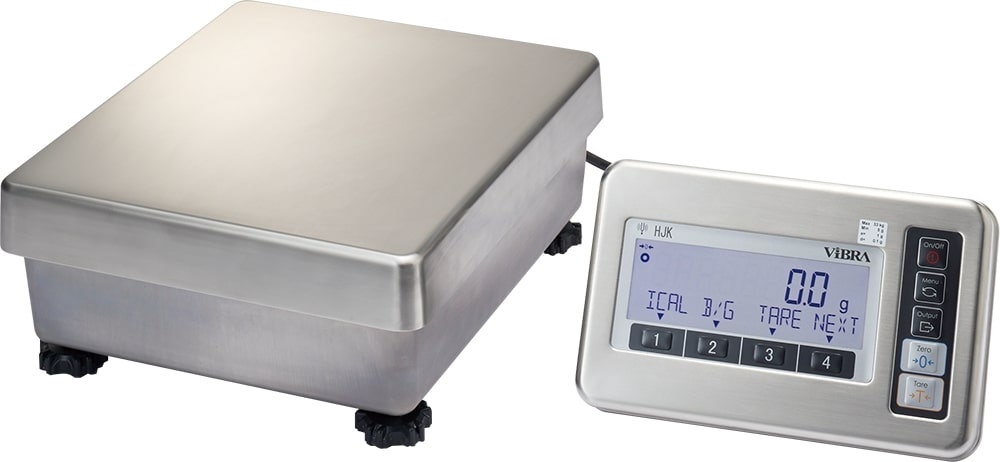

HJK series

Platform scale
Capacity:17000g〜62000g/Readability:0.1g~1g

Precision platform scale

Common Specification

Tare Zero to Full weighing range
Span adjustment HJK・・・・・With external calibration weight
HJK-R・・・・・Automatic with internal calibration weight
Ingress Protection Rating IP65
Over error "o-Err" showed when Full weight range + 9 more digits over
Temperature and humidity range 5 ~ 35℃、Up to 80% rh(without the dew condensation)
Power source Dedicated AC adapter (100-240 VAC, 12 VDC)
Output RS232C (Dsub 9P)

Download

Features

  • For more efficient precision weighing in manufacturing process
  • IP65 water&dust proof
  • High precision & durable

High degree of usability - For more efficient weighing operation

User-friendly key configurations, reasonable menu-tree and short stabilization time make possible the efficient and comfortable weighing operation.

High degree of usability - For more efficient weighing operation

High durability in precision weighing enabled by Tuning-fork sensor

Innovative and heavy-duty tuning-fork sensor provides everlasting excellent performance in precision weighing in various manufacturing processes.

High durability in precision weighing enabled by Tuning-fork sensor

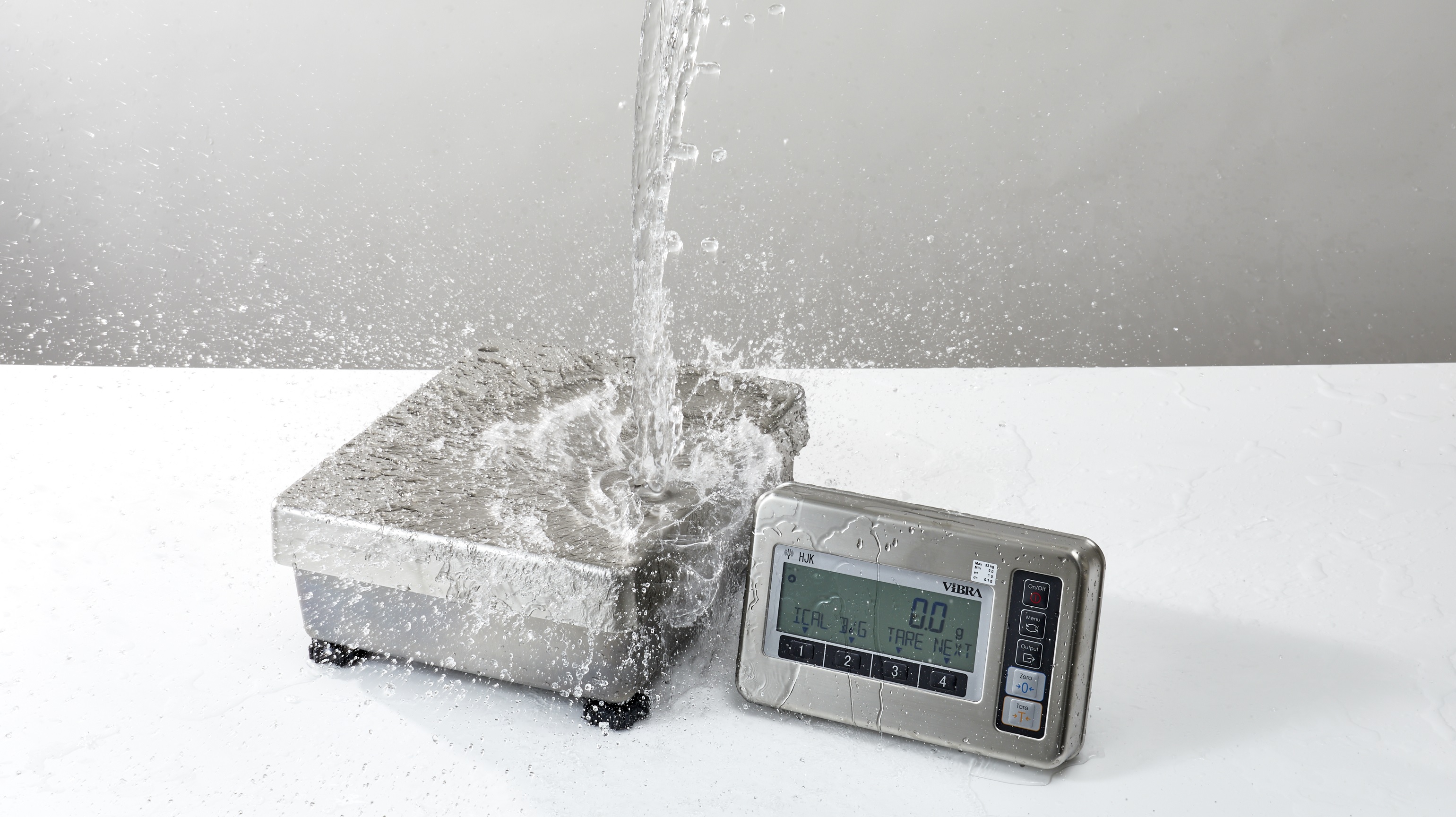

Water-proof structure, easy to clean

Because both of platform and indicator are made from stainless steel they are highly resistant to physical shocks and chemical materials. Easy to clean by water after operation.

Water-proof structure, easy to clean

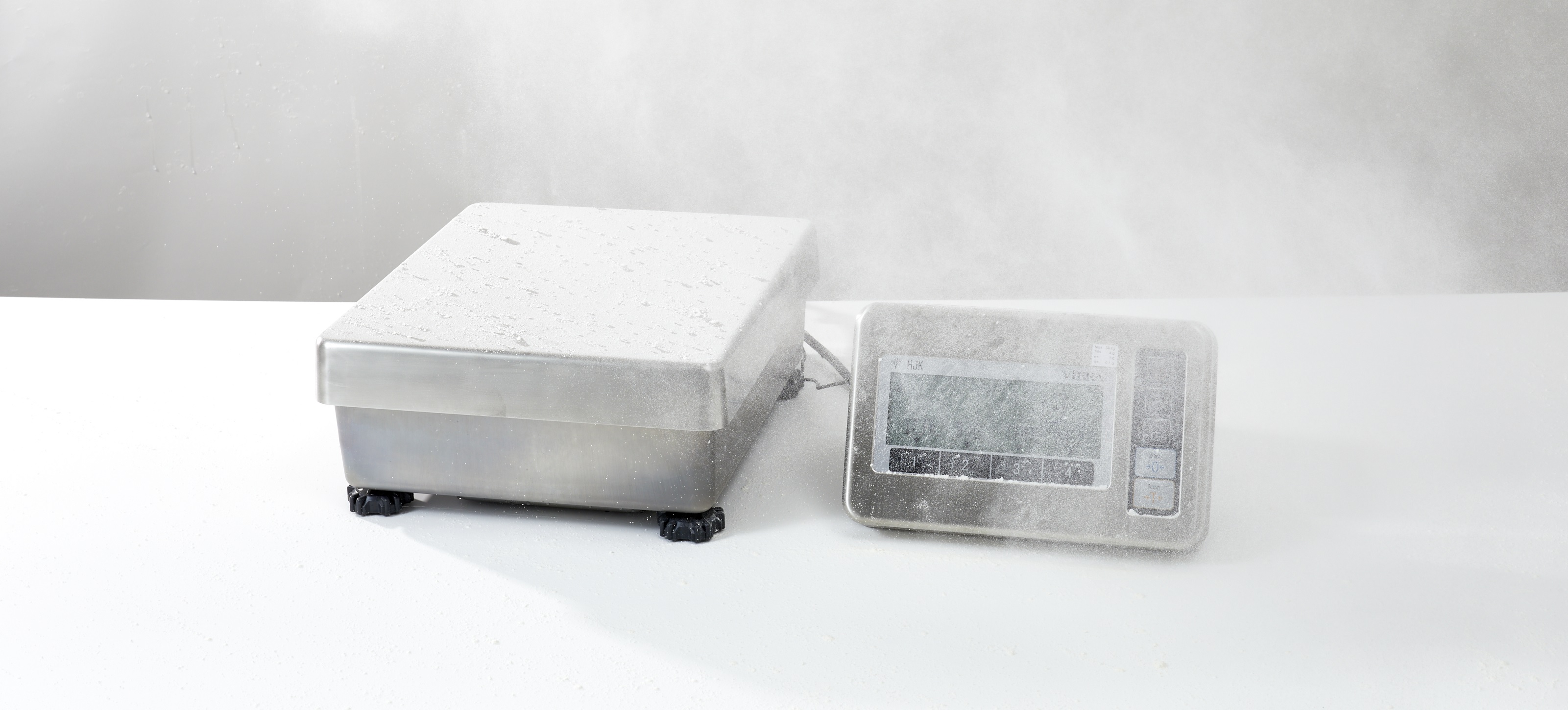

Dust-proof structure, highly resistant to severely dusty environment

IP65 dust-proof structure ensures reliable weighing results even in severely dusty environment.

Dust-proof structure, highly resistant to severely dusty environment

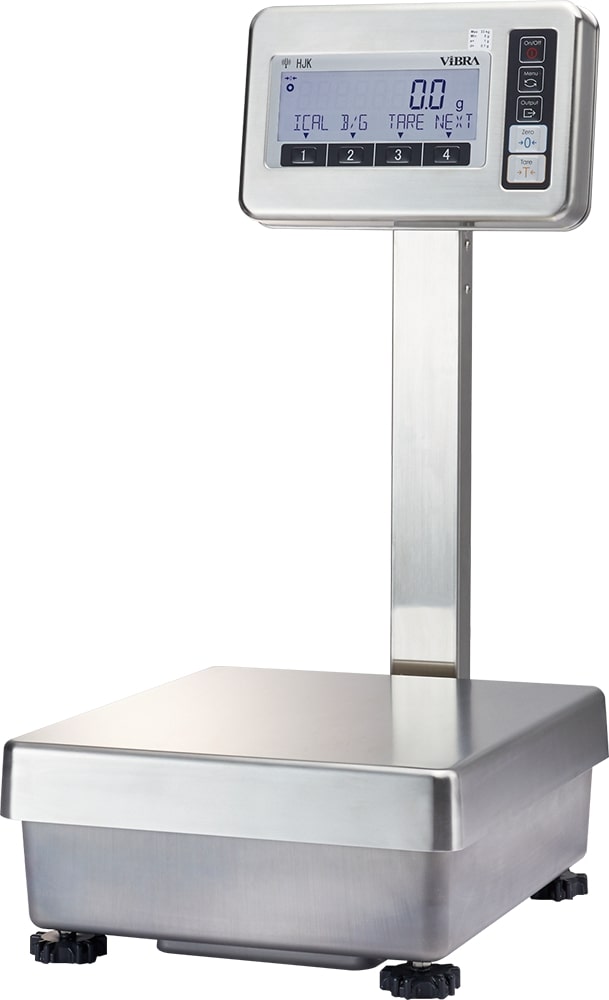

Pole style with optional kit

Optional pole kit is available.

Pole style with optional kit

Specification

External weight types

Model name HJ17K0.1S HJ22K0.1S HJ33K0.1S HJ62K0.1DS
Capacity 17kg 22kg 33kg 6200g 62kg
Readability (d) 0.1g 0.1g 0.1g 0.1g 1g
Verification intervals (e) 1g 1g 1g 1g
Non-linearity ±0.3g ±0.3g ±0.3g ±0.3g ±3g
Repeatability (σ) 0.1g 0.1g 0.1g 0.1g 1g
Pan size 400 x 350 mm
Dimension (LDH) 350 x 482 x 175mm (350 x 482 x 700mm when pole option installed)
Calibration With external weight

Internal weight types

Model name HJ17K0.1SR HJ22K0.1SR HJ33K0.1SR HJ62K0.1DSR
Capacity 17kg 22kg 33kg 6200g 62kg
Readability (d) 0.1g 0.1g 0.1g 0.1g 1g
Verification intervals (e) 1g 1g 1g 1g
Non-linearity ±0.3g ±0.3g ±0.3g ±0.3g ±3g
Repeatability (σ) 0.1g 0.1g 0.1g 0.1g 1g
Pan size 400 x 350 mm
Dimension (LDH) 350 x 482 x 175mm (350 x 482 x 700mm when pole option installed)
Calibration With internal and external weight

Option

Model No. Option Name
HKBT Rechargeable battery
HJKLM Relay contact
HJKPK Pole kit
HJKR4 RS422A output
HJKUH Under weighing hook
HJKPC Extended pick-up cable (5m or 10m)

Peripheral equipment

Model No. Peripheral Name
CBM-910Ⅱ Standard Printer
RTS Data-collecting Software
Relay output, RS422 output and Internal rechargeable battery cannot be installed together. When RS422 output is installed, the standard RS232C output is not available.
