FMA series

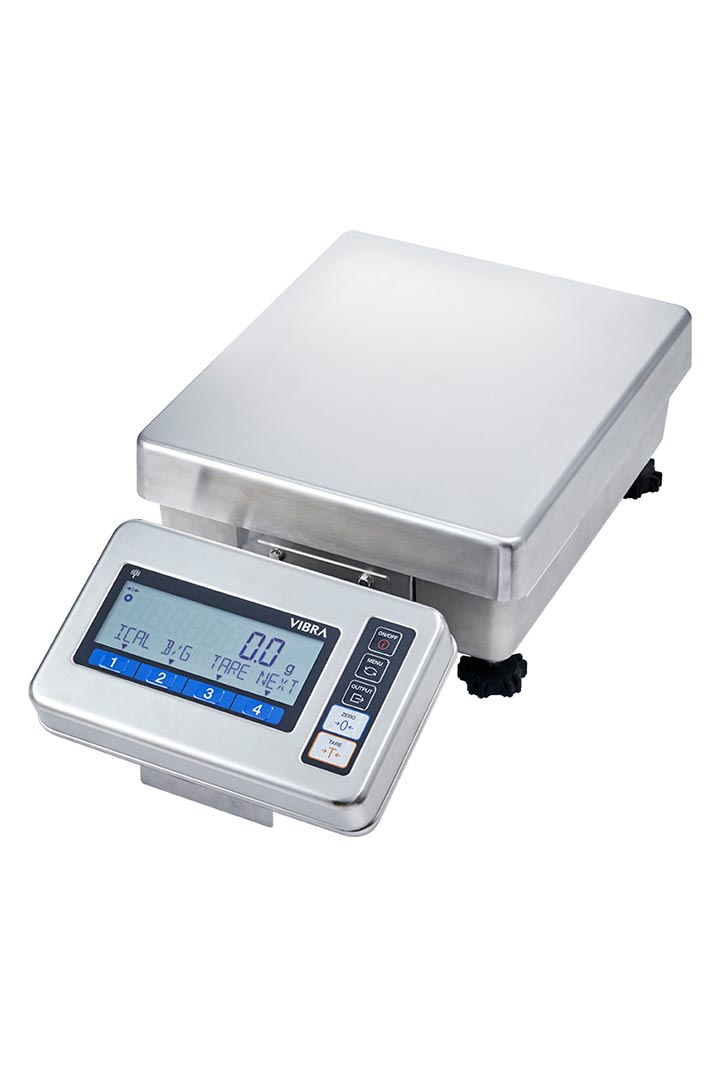

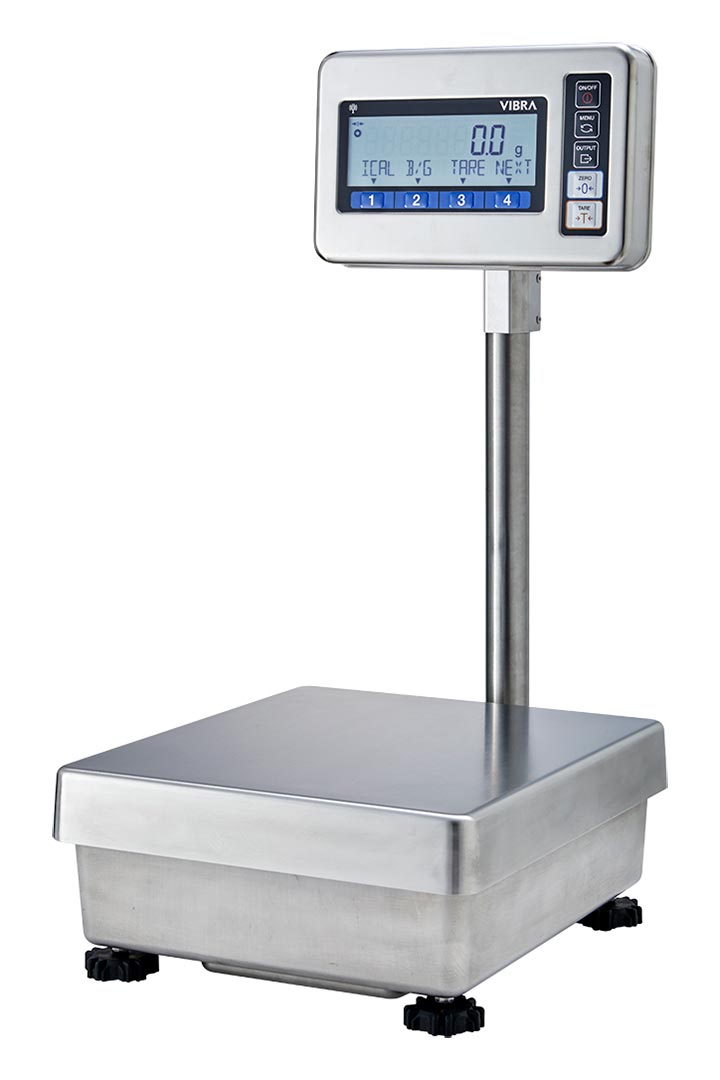

Platform scale
Capacity:22kg〜62kg/Readability:0.1g~1g

High-Precision Weighing platform scale

Common Specification

Tare Zero to Full weighing range
Span adjustment FMA・・・・・ Manual Operation Span Adjustment with external calibraton weight
FMAR・・・・ Semi Automatic Span Adjustment with internal calibration weight
Ingress Protection Rating IP65
Over error "o-Err" showed when Full weight range + 9e more digits over
Temperature and humidity range 5 ~ 35℃、Up to 80% rh(without the dew condensation)
Power source AC adapter input 100-240VAC / DC12V
Output RS232C (Dsub 9P)

Download

Features

  • High-Precision(0.1g readability at 62kg Resolution of 1/620,000)

  • Highly Shock Resistant(Passed 30kg Sandbag Drop Tests from 20cm)

  • Highly Vibration Resistant(Cut Noise Factor 90%)

  • IP65

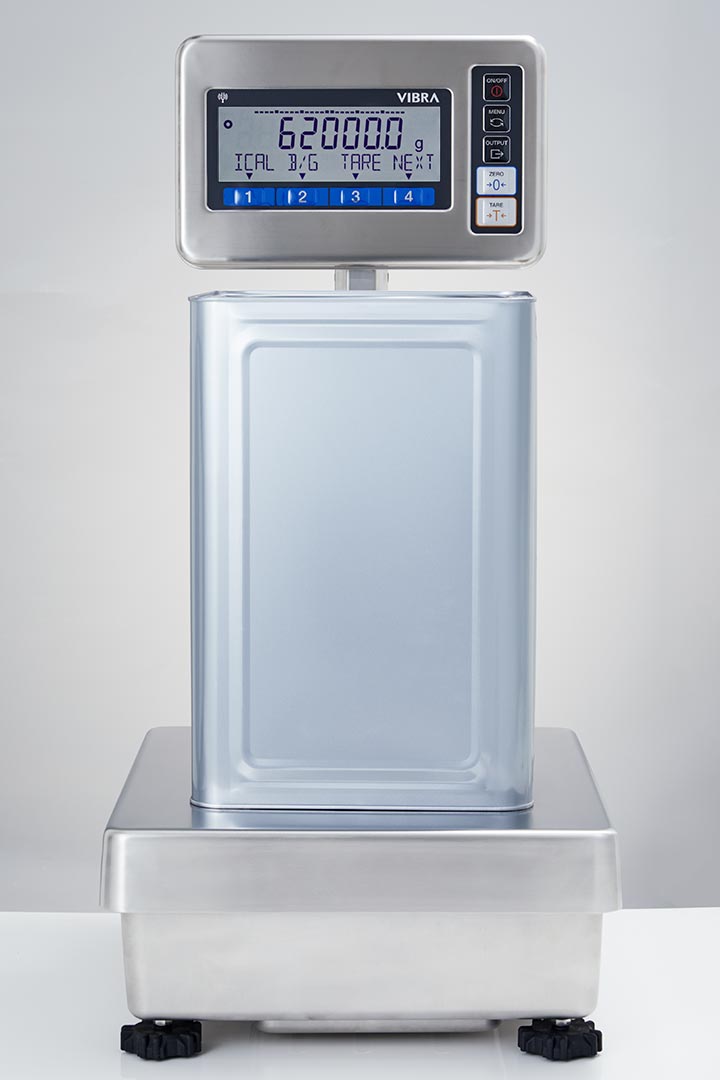

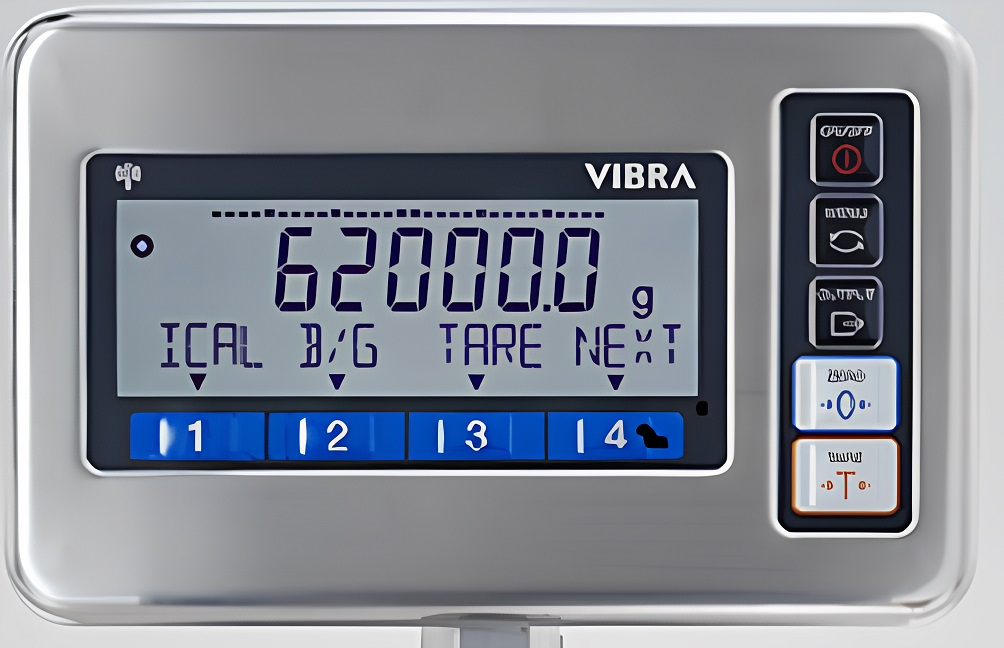

High-Precision

Maximum capacity of 62 kg with a minimum display of 0.1 g, achieving 10 times the precision of conventional models. Accurately detects even slight changes in weight, making it ideal for weighing heavy objects or items with substantial tare weight, meeting diverse weighing needs.

High-Precision

Highly Vibration Resistant

Equipped with newly developed sensor reduces external vibrations effects. Minimizes vibration interference from factory equipment to1/10 of conventional models, enhancing overall production line efficiency and supporting high-quality manufacturing.

Highly Vibration Resistant

Highly Shock Resistant

Redesigned housing structure for impact resistance, successfully passing a 30 kg drop test from 20 cm above the weighing pan. Maintains high precision even under unexpected impacts.

Highly Shock Resistant

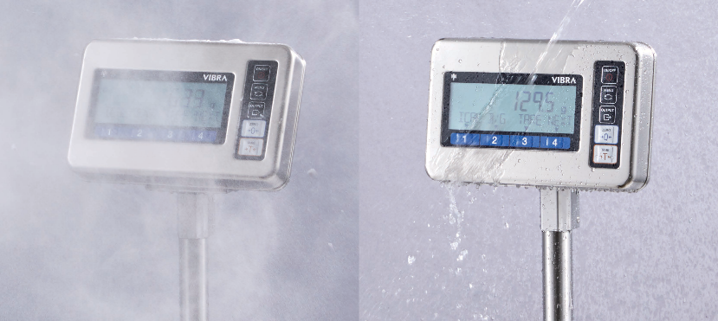

IP65

IP65-rated dustproof and waterproof stainless steel body, allowing for easy washing. Ideal for environments with high humidity or dust, such as food processing and chemical handling sites

IP65

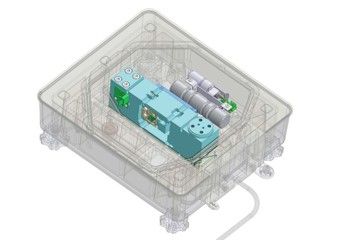

Equipped with a newly developed sensor and built-in calibration weigh

Newly developed tuning fork-type force sensor enables high precision and durability, previously unattainable with conventional structures. Regular calibration with built-in weight ensures accurate measurements, boosting productivity and stabilizing product quality.

Equipped with a newly developed sensor and built-in calibration weigh

A housing design focused on ease of cleaning and integration

By minimizing irregularities in the housing and adopting an IP65-rated stainless steel casing, we have achieved high cleanliness. The use of connector connections between the display and weighing units greatly improves cable routing and device integration flexibility compared to previous models.

A housing design focused on ease of cleaning and integration

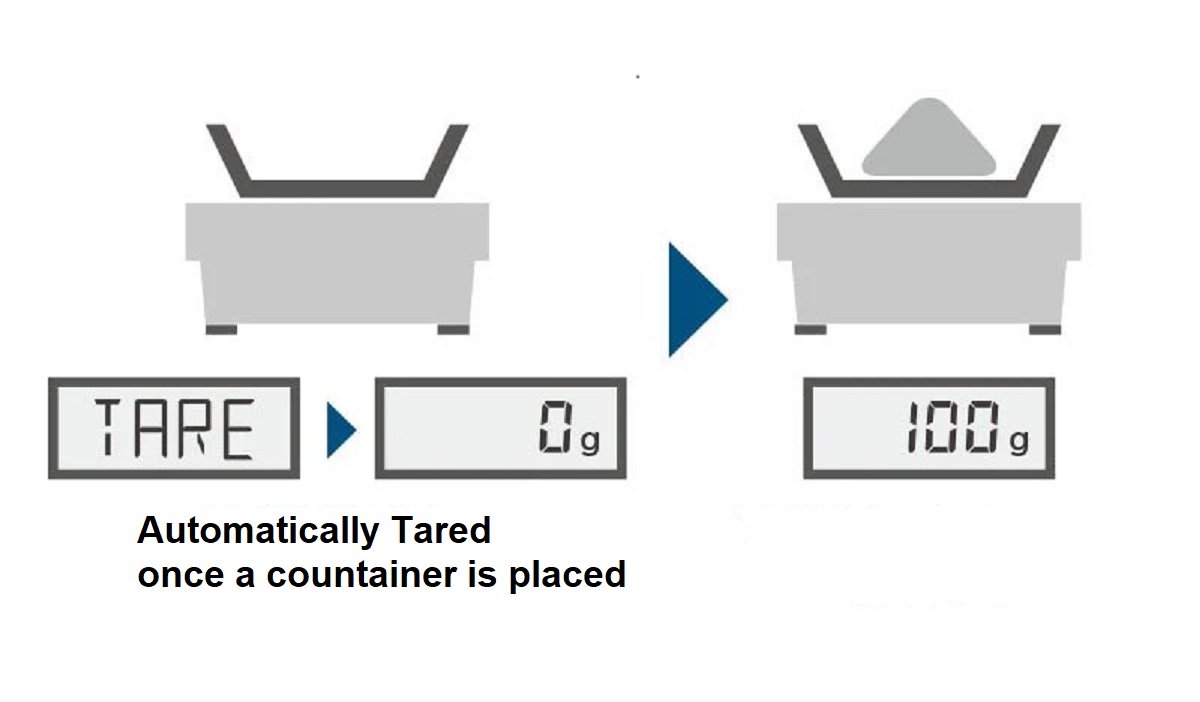

Comfortable weighing operations with the automatic tare function

It automatically performs tare when a container is placed, eliminating button operations. It reduces risk of human error, improves efficiency of repetitive weighing tasks, and lightens operator's workload.

Comfortable weighing operations with the automatic tare function

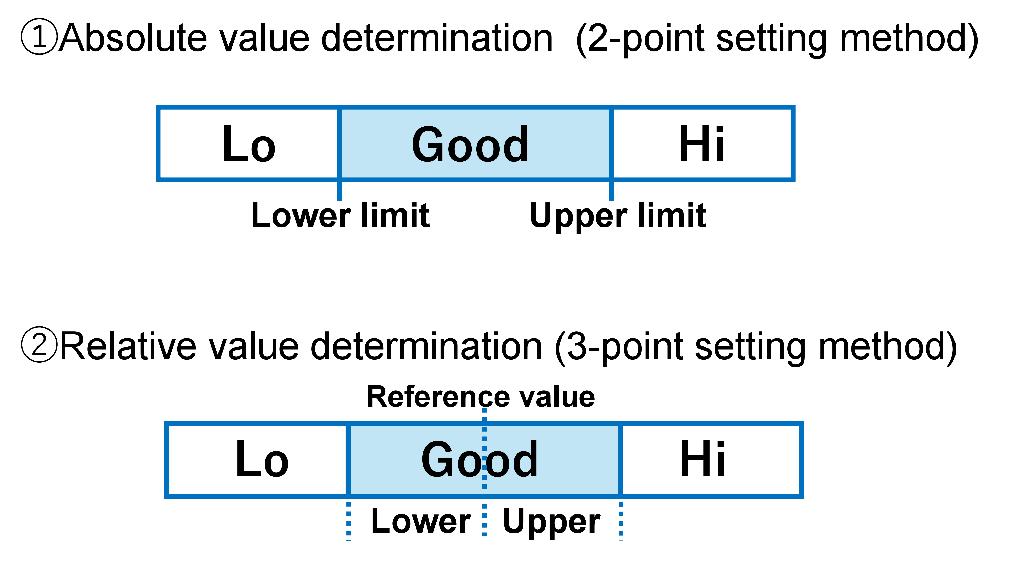

2 types of comparator functions

The weighing results are automatically evaluated and compared with the preset values.
① Absolute value determination (two-point setting method)
Set lower and upper limits
・If weight of the measured item is below the lower limit ; Lo
・If exceeds the upper limit : Hi
・Otherwise (or if the value is equal) : Good
② Relative value determination (three-point setting method)
Set the reference value, lower limit width, and upper limit width.
・If weight of the measured item is below (reference value - lower limit width): Lo
・If exceeds (reference value + upper limit width): Hi
・Otherwise (or if the value is equal): Good

2 types of comparator functions

Specification

External weight types

Model name FMA22K0.1S FMA33K0.1S FMA62K1S FMA62K0.1S
Capacity (Max) 22kg 33kg 62kg 62kg
Readability 0.1g 0.1g 1g 0.1g
Non-linearity ±0.2g ±0.2g ±1g ±0.2g
Repeatability (σ) 0.1g 0.1g 0.1g※ 0.1g
Pan size W350 x D400 mm
Dimension (LDH) 350 x 426 x 175mm (350 x 482 x 700mm when pole option installed)

Internal weight types

Model name FMA22K0.1SR FMA33K0.1SR FMA62K1SR FMA62K0.1SR
Capacity 22kg 33kg 62kg 62kg
Readability 0.1g 0.1g 1g 0.1g
Non-linearity ±0.2g ±0.2g ±1g ±0.2g
Repeatability (σ) 0.1g 0.1g 0.1g※ 0.1g
Pan size W350 x D400 mm
Dimension (LDH) 350 x 426 x 175mm (350 x 482 x 700mm when pole option installed)

※ with 0.1g readability on inspection

Option

Model No. Option Name
FMA-DU Under weighing hook (※1., ※2.)
FMA-LM Relay output (Dsub 25p) (※4., ※6., ※7.)
HJKR4 RS422A output (Dsub 9P) (※4., ※5., ※6.)
FMA-BT Rechargeable battery option (12-hour charge, 10-hour drive) (※3., ※4., ※7.)
FMA-BK Display bracket
FMA-PK Pole Kit
FS-DS Display stand for FMA
FMA-SC5 Scale cable 5m
FMA-SC10 Scale cable 10m
※1.When FMA-DU option is installed, it is not IP65 compliant ※2.FMA-DU option cannot be used for legal for trade purposes ※3.Battery operation time is measured with the backlight off ※4.FMA-LM, FMA-R4, and FMA-BT options are factory-installed ※5.Selecting FMA-R4 option changes RS-232C output to RS-422A ※6.FMA-LM and FMA-R4 options cannot be used together ※7.FMA-LM and FMA-BT options cannot be used together

Peripheral equipment

Model No. Peripheral Name
CBM-910Ⅱ Standard Printer
SFS-1 Foot switch for tare
FMA-USBC RS232C-USB convertor (※8.)
FMA-ETHC RS232C-Ethernet convertor (※8.)
※8.When using a converter, an RS-232C cross cable is required
