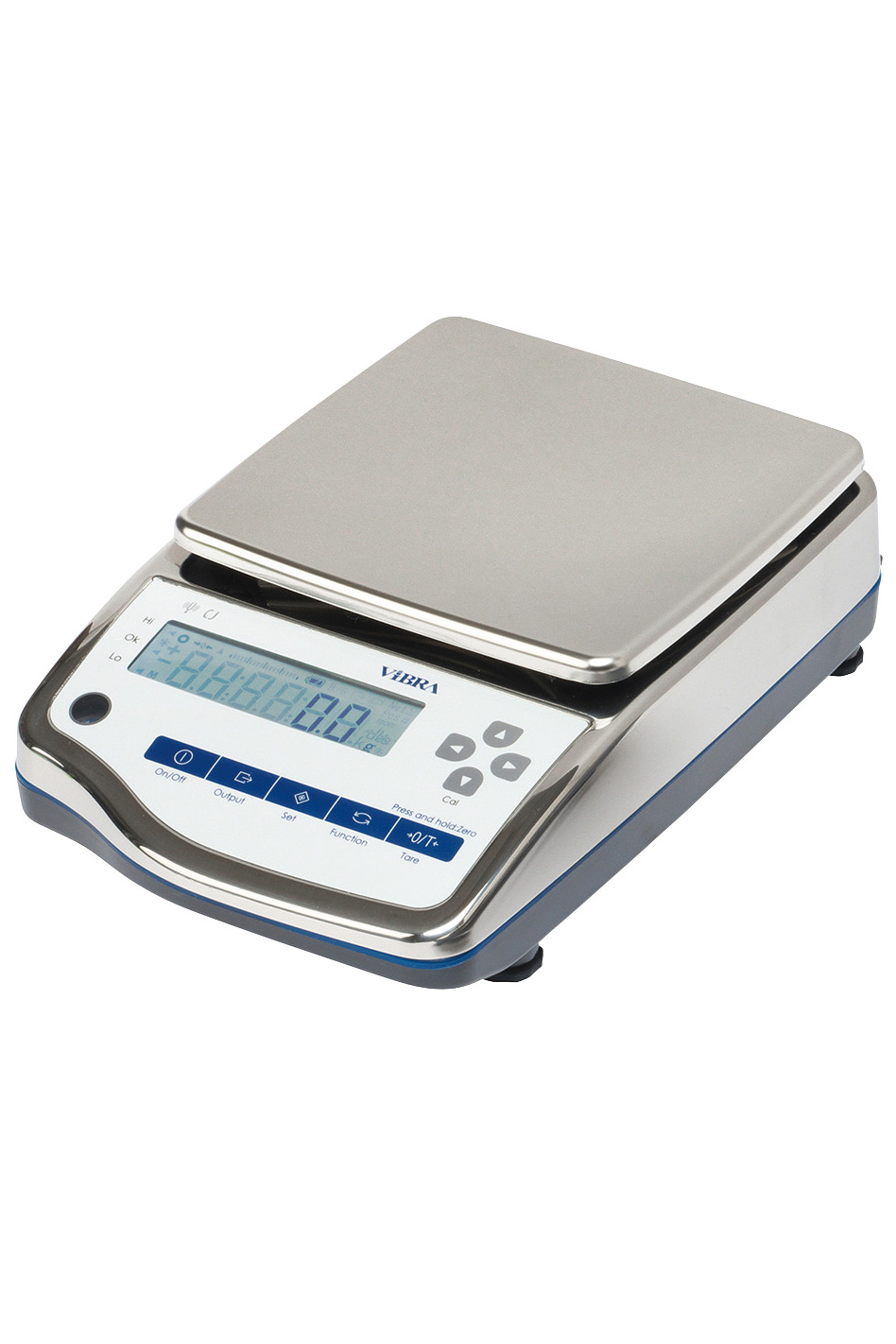

CJC series

Precision Balance
Capacity:820g〜15kg/Readability:0.01g~1g

IP65 compliance with min.graduaton at 10mg
Electronic balance used for Heavy duty purpose in stainless steel body

Common Specification

Tare Zero to Full weighing range
Span adjustment CJC:Manual operation Span Adjustment with external calibration weight
CJC-R:Semi-automatic Span Adjustment with built-in calibration weight
Ingress Protection Rating IP65
Over error "o-Err" showed when Full weight range + 9 more digits over
Temperature and humidity range 5 ~ 35℃、Up to 80% rh(without the dew condensation)
Power source AC adapter Input 100-240VAC / Output 5.95VDC
Dry battery drive (optional) : AA x 4
Output RS232C(Dsub 9P)

Download

Features

  • OIML R76 Class II approved (Model CJC-CE)
  • Stainless steel enclosure (SUS304), rust-resistance and strong for corrosion
  • Low power consumption and earth-friendly eco-product
  • Large LCD display with auto-off back light
  • Employed 2 way drive method: AC adapter, Dry battery
  • With an optional Battery adaptor case,it can be used anytime and anywhere - ideal for fieldwork or locations without a power supply
  • 13 weighing units (Model CJC-E)
  • Corresponding to free download Data Acquisition software "RTS"

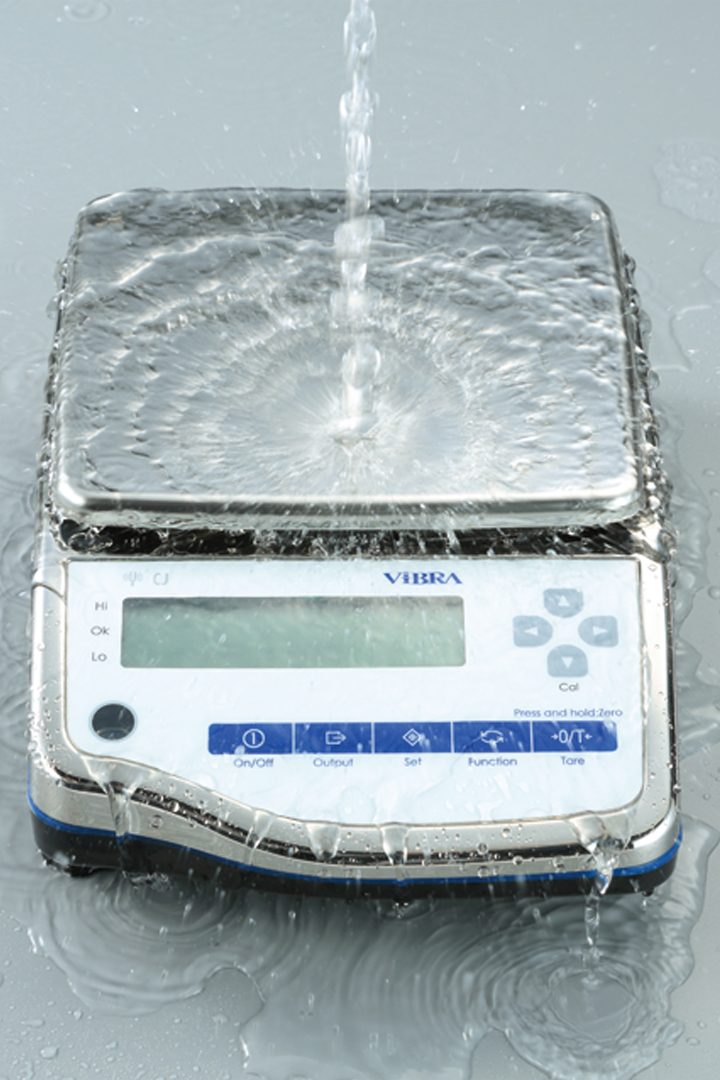

Heavy duty precision balance with water and dust proof feature

CJC series promises the excellent performance in any environment, dust atmosphere, mist, oil splashes, dark condition... etc. The stainless-steel upper case is resistant to chemical products, and easy to clean. This is the best solution to your every needs.

Heavy duty precision balance with water and dust proof feature

Minimize the response time and keep the indication stable

Unique tuning-fork sensing system achieves the high speed response and stable indication necessary for reliable measurement. The fast response ensures the comfortable and efficient operation.

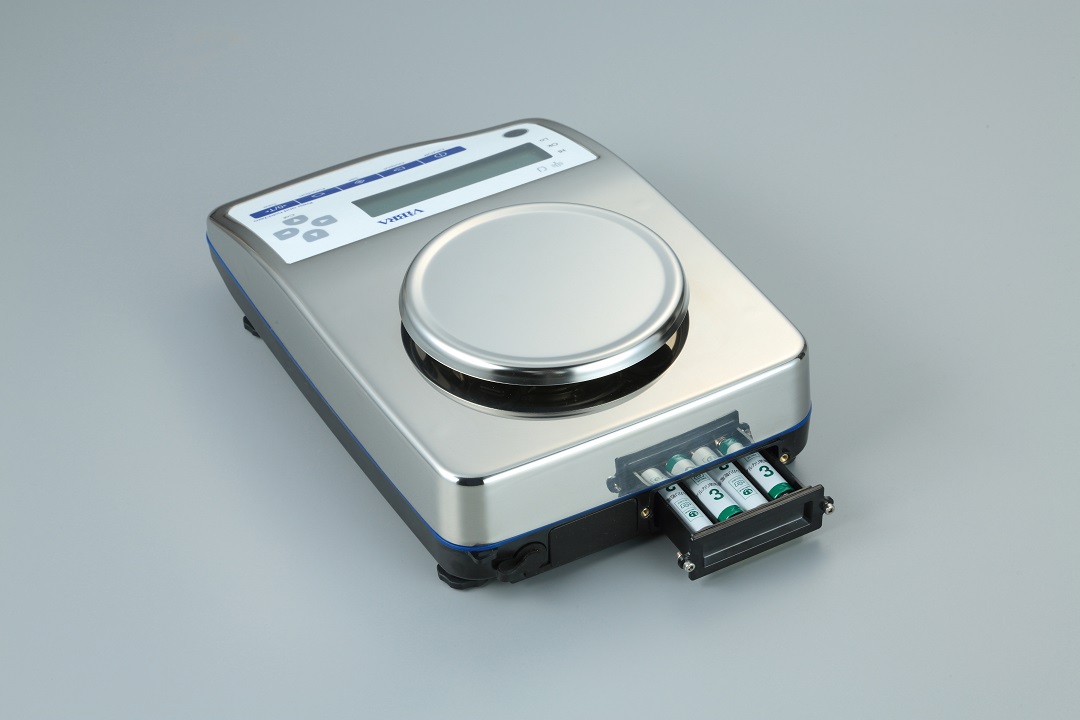

Low energy consuming, high portability

Low energy-consuming design allows CJC series to operate for 200 hours with dry-cell battery (when back-lit is OFF). It is very much suitable for mobile use (32-hour operation with dry-cell battery in case of back-lit ON)

Low energy consuming, high portability

Various measurement modes & functions for industrial weighing

Parts counting, percentage, comparator, density measurement... CJC is the answer to various requirements in the industrial weighing. You can easily set the appropriate mode with arrow key.

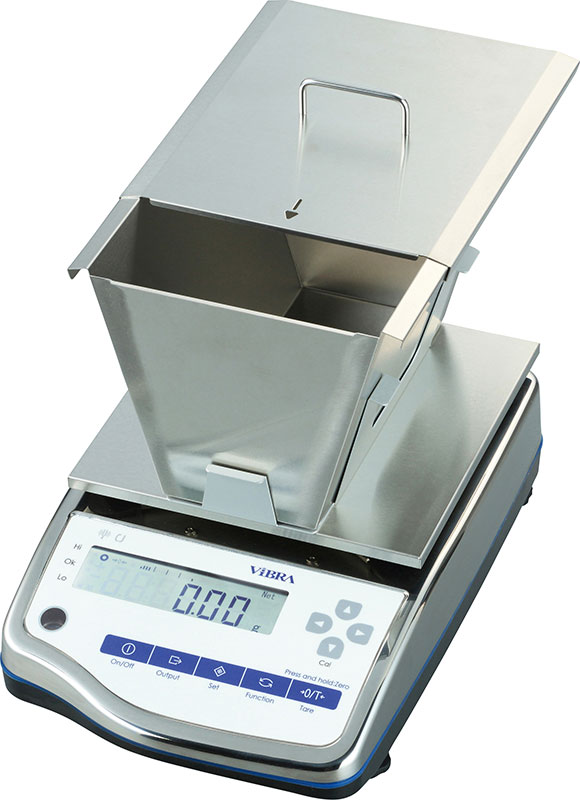

Animal weighing

CJC series has animal weighing mode which can accurately weigh the moving animal. The special bucket selectable from three sizes for animal weighing is available as option.

Animal weighing

Connecting to outside devices

RS232C output is equipped as standard, easy connection to outside devices like PC. Plentiful outputs besides RS232C are available as option (special WP cable option is necessary when CJC should be used with RS232C output as water-proof).


Specification

Model name CJC822E
CJC822CE
CJC3201E
CJC3201CE
CJC8201E
CJC8201CE
CJC15000E
CJC15000CE
Capacity 820g 3200g 8200g 15000g
Readability (d) 0.01g 0.1g 0.1g 1g
Repeatability 0.01g 0.1g 0.1g 1g
Linearity ±0.01g ±0.1g ±0.1g ±1g
Pan size 140mm dia 190×190mm
Dimentions(WDH) 206×312×89mm

Model name CJC622RE
CJC622RCE
CJC3201RE
CJC3201RCE
Capacity 620g 3200g
Readability (d) 0.01g 0.1g
Repeatability 0.01g 0.1g
Linearity ±0.01g ±0.1g
Pan size 140mm dia 190×190mm
Dimentions(WDH) 206×312×89mm

Option

Model No. Option Name
CJ-R4 RS422A output (※1)
CJ-LM Relay contact (※2)
CJ-BT Battery adaptor case (※2)
CJ-WR Water-proof cable for RS232C output
AJUH(S) Under-weighing hook
CJ-AP(S) Bucket for animal weighing (620g, 820g)
CJ-AP(M) Bucket for animal weighing (3200g)
CJ-AP(S) Bucket for animal weighing (620g, 820g)
CJ-AP(M) Bucket for animal weighing (3200g)
CJ-AP(L) Bucket for animal weighing (8200g, 15kg)
※1. RS232C is replaced by RS422A  ※2. Relay contact and Dry battery drive are not available together

Peripheral equipment

Model No. Peripheral Name
CBM-910Ⅱ Standard Printer
CSP-160Ⅱ Statistics Printer
