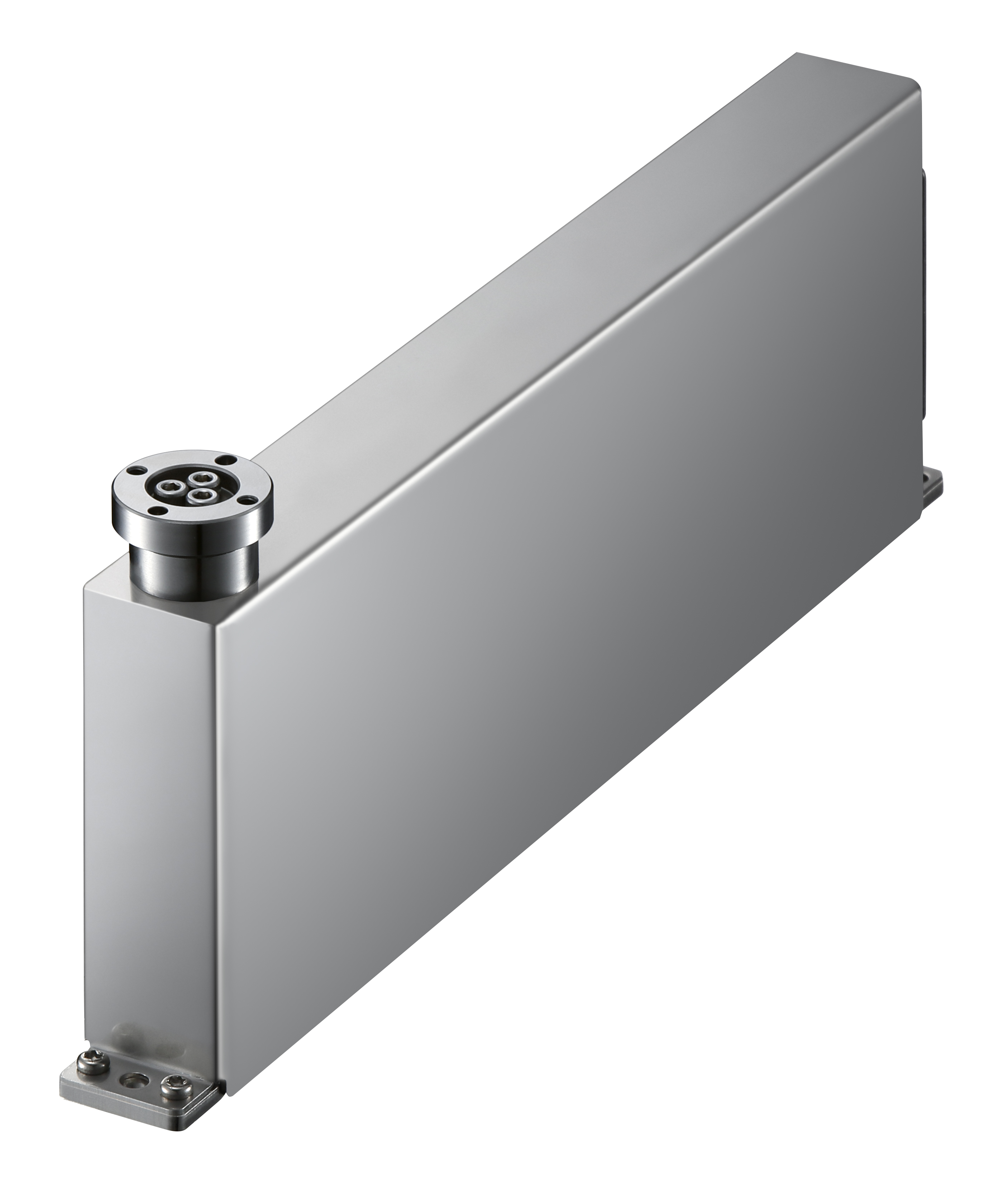

Built-in weighing unit
Capacity：30g〜3200g／Readability：0.0001g～0.01g

High-Accuracy/Fast Response in 56 mm width of top class in the industry.

Common Specification

Tare Zero to Full weighing range
Span adjustment Manual operation Span Adjustment with external calibration weight
Ingress Protection Rating IP65 (with optional water proof connector cable) (UF-620, UF-3200 only)
Power source DC +24V± 10%, 0.1A
Interface Half duplex RS485, Full duplex RS232C 1200 to 38.4kbps

Download

UF-620/3200 manual
UF RS485 manual
UF-1200 manual

Features

  • Realized a high-accuracy weighing with min. resolution (0.0001g for UF30,  0.001g for UF-300/UF-620/UF-1200)
  • Display resolution 1mg at 5% capacity : approx. 0.4 sec, Weighing renewal
    rate at max.100 times/sec, Fast response. (UF-300, UF-620, UF-1200)
  • Dust-proof and water-proof: All enclosure is made with stainless steel.
  • IP65 standards compliant, implement water-proof connector (Optional)(UF-620, UF-3200)
  • Able to output data directly to PLC or PC.

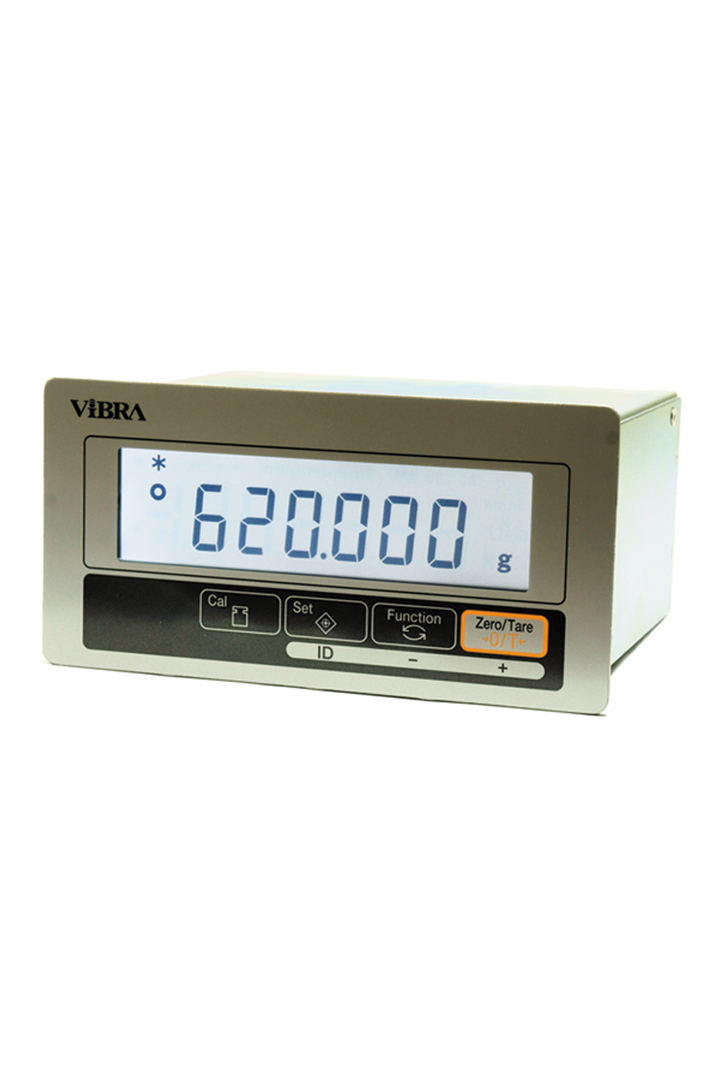

Display unit UD-1(option)

Model name UD-1
Display LCD with back-light
Power source DC +24V± 10%, 0.1A
Dimentions(WDH) 144×130×72mm
Weight Approx. 700g
Display unit UD-1(option)

Specification

Model name UF-30 UF-300 UF-620 UF-1200 UF-3200
Capacity 30g 300g 620g 1200g 3200g
Readability (d) 0.0001g 0.001g 0.001g 0.001g 0.01g
Repeatability 0.0001g 0.001g 0.001g 0.001g 0.01g
Linearity ±0.0002g ±0.002g ±0.002g ±0.004g ±0.02g
Stabilization time 0.4 sec. 0.4 sec. 0.4 sec. 0.4 sec. 0.4 sec.
data updating interval (max) 106 times/sec 106 times/sec 106 times/sec. 106 times/sec. 106 times/sec.
IP Rating No No IP65 No IP65
Dimentions(WDH) 25×250×99mm 56x230x85mm 56x230x95mm

Functions

Option

Model No. Option Name
UD-1 Display unit
UF BCD BCD Option
UF WPAN Weighing pan
UF AD AC adaptor
UF CB Connector cable (10m)
UF WPCB Water proof connector cable (10m)
